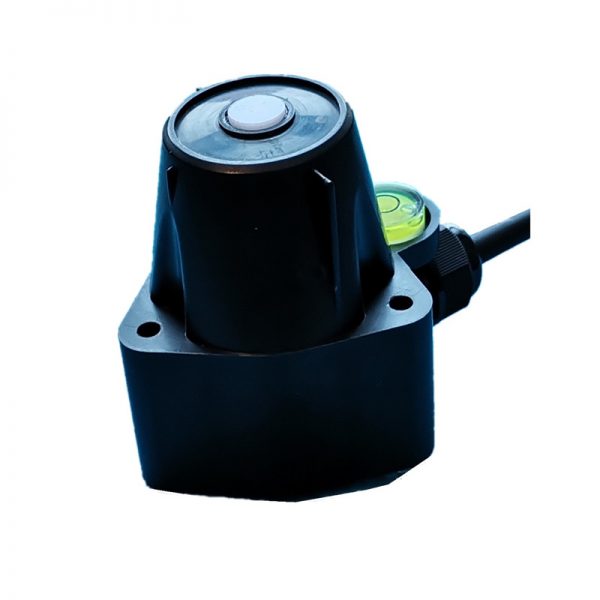

ALS20-Ambient Light Sensor, Illuminance Transmitter, SDI-12 Interface
View:9912 Category:Ambient Light & Illuminance Category:Measurements Category:Products Category:SDI-12 Products Category:SDI-12 Sensors
ALS20 ambient light sensor, or illuminance sensor, measures the ambient illuminance. Each sensor is calibrated and offers excellent accuracy and consistency. The sensor is applicable for science research, solar power , greenhouse, weather station etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.
Resources | |
User Manual | ALS20 Ambient Light Sensor User Manual (SDI-12 Interface) |
Software | SensorOneSetSDI12-EN |
ALS20 ambient light sensor, or illuminance sensor, measures the ambient illuminance. Each sensor is calibrated and offers excellent accuracy and consistency. The sensor is applicable for science research, solar power , greenhouse, weather station etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.
Features:
■ Measurement range to 200000lux
■ SDI-12 Output Interface with low power design
■ Level indicator and spring loaded for installation
■ Water proof to IP66 can be used outdoor directly
■ High accuracy and consistency with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
Specifications | |||

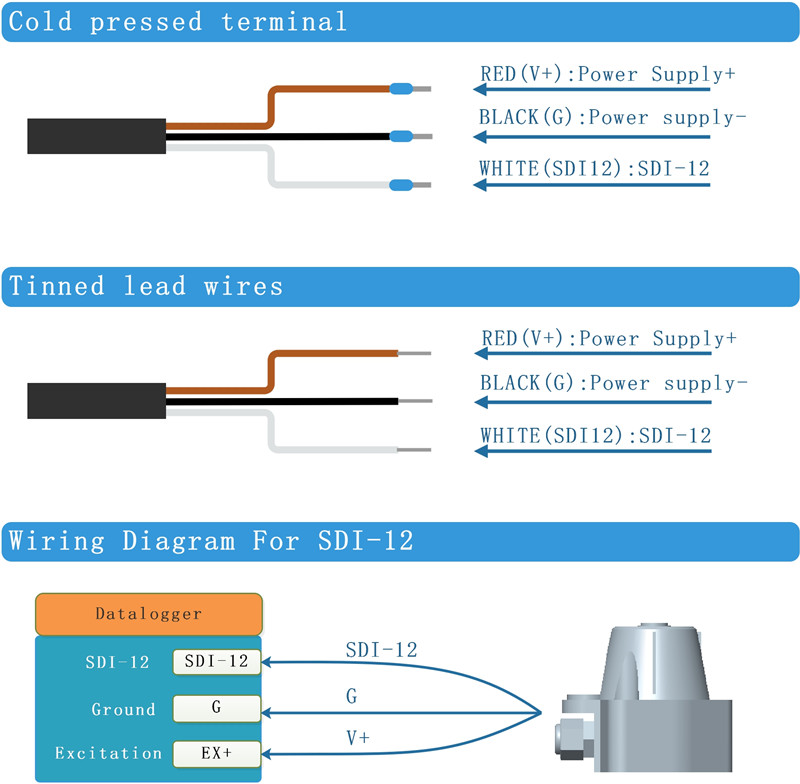

Output Interface | Optional: SDI-12, V1.3 | ||
Power Supply | 4.5-28V/DC | ||
Power Consumption | SDI-12 Interface: Quiescent Current : <10uA
Measuring Current : 10mA during 50ms measurement |
||
Solar Radiation | Range:0~200000 Lux, Accuracy:±6% , Resolution:1lux | ||
Direction Error | 30°±3%,60°±6%,80°±24%(Consine Characteristics) | ||
Operating | Temperature: -40~80°C, Humidity: 0-100% | ||
IP Ratings | IP66 | ||
Installation | Screw hole * 3 | ||
Cable Length | 2 meters or Customize | ||

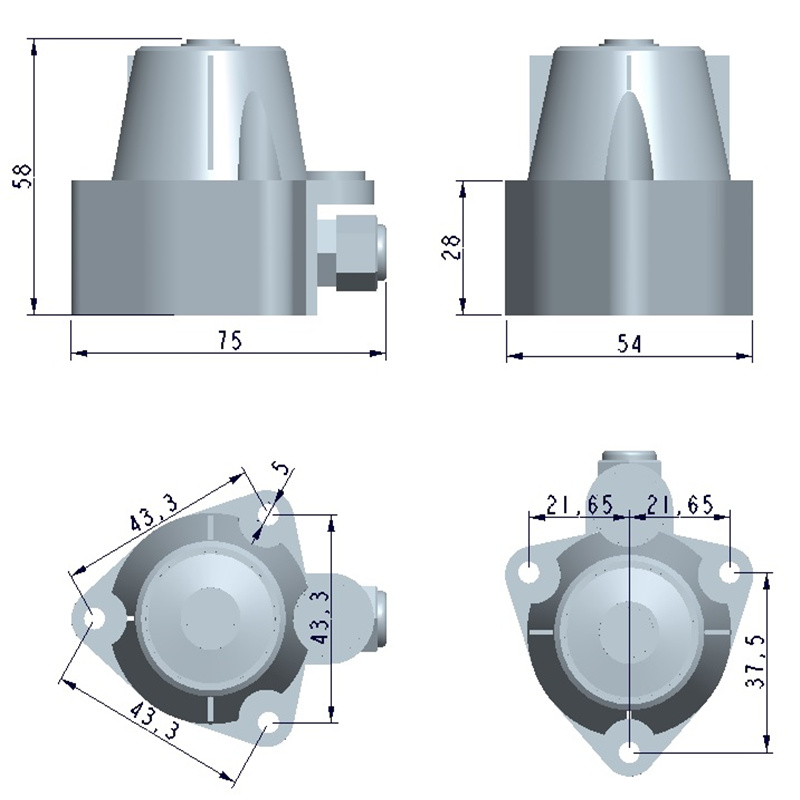

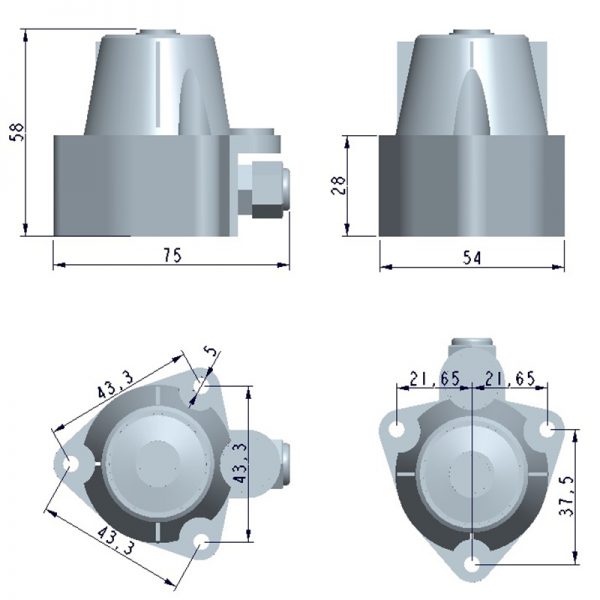

Dimension | Sensor Body 75*55*58mm |
Ordering Information | |||
Parameters | Code | Comments | |
Code 1:Product Series | ALS20 | ALS20 ambient light sensor | |
Code 2: Range | F | Customize | |
Code 3:
Power Supply |
C | 4.5-28V DC | |
Code 4:
Output Interface |
F | SDI-12 | |
Code 5:
Cable Length |
002
XXX |
2 meters
Customize, XXX is required cable length(Unit: meter) |
|
Ordering Code Example:
ALS20 ambient light sensor, Range 2000000 lux, Power Supply 4.5-28V DC, Output Interface SDI-12, Cable length 2 meters. Ordering Code is: ALS20-FCF002 |
