LWS10-Leaf Wetness Sensor, SDI-12 Interface

LWS10-Leaf Wetness Sensor, SDI-12 Interface

View:5196 Category:Leaf Wetness Category:Measurements Category:Products Category:SDI-12 Products Category:SDI-12 Sensors

Please contact us for more information

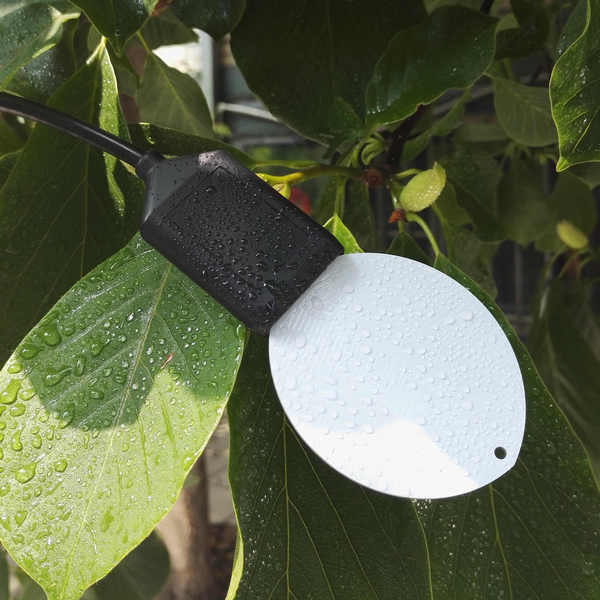

  LWS10 measures leaf wetness. It sealed with resin packaged plastic body can be used for long time monitor. Wetness measurement value is proportional to the percentage of sensing area covered with water. The sensor is applicable for science research, bacteria prevention, foliage dressing spraying, greenhouse, smart agriculture etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.



Resources
User Manual LWS10 Leaf Wetness Sensor User Manual (SDI-12 Interface)
Software SensorOneSetSDI12-EN

  LWS10 measures leaf wetness. It sealed with resin packaged plastic body can be used for long time monitor. Wetness measurement value is proportional to the percentage of sensing area covered with water. The sensor is applicable for science research, bacteria prevention, foliage dressing spraying, greenhouse, smart agriculture etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.



Features

■ Integrated with leaf wetness and temperature measurement

■ SDI-12 Output Interface with low power design

■ Mimics the real leaf thermal resistance by sensing shape and thickness

■ Water, ice, foggy detection

■ Water proof to IP68 ratings

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection



Applications

■ Smart agriculture

■ Greenhouse monitoring

■ Science research

■ Bacteria prevention

■ Foliage dressing spraying



Specifications
Output Interface SDI-12, V1.3
Power Supply 4.5-28V/DC
Power Consumption SDI-12 Interface: Quiescent Current : <10uA

Measuring Current : 10mA during 50ms measurement

Temperature Range:-40~80°C, Resolution:0.1°C, Accuracy: +/-0.5°C
Wetness Range:0~100%, Resolution:0.1%, Accuracy: +/-5%
Operating Temperature: -40~80°C, Humidity: 0-100%
IP Ratings IP68
Cable Length 2 meters or Customize

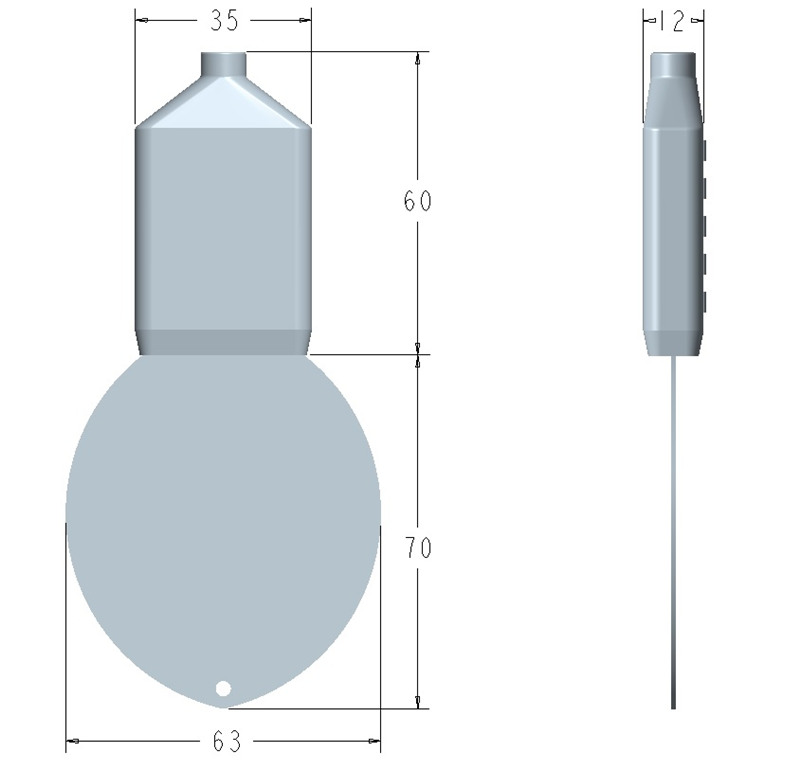

Dimension Sensor Body 65*13*145mm



Ordering Information
Parameters Code Comments
Code 1: Product Series LWS10 LWS10 leaf wetness and temperature Sensor
Code 2: Output Interface F SDI-12
Code 3: Power Supply E 4.5-28V DC
Code 4: Cable Length 002

XXX

2 meters

Customize, XXX is required cable length(Unit: meter)

Ordering Code Example:

Leaf wetness and temperature sensor, Output Interface SDI-12, Power Supply 4.5-28V DC, Cable Length 2 meters. Ordering Code is : LWS10 – FE002
