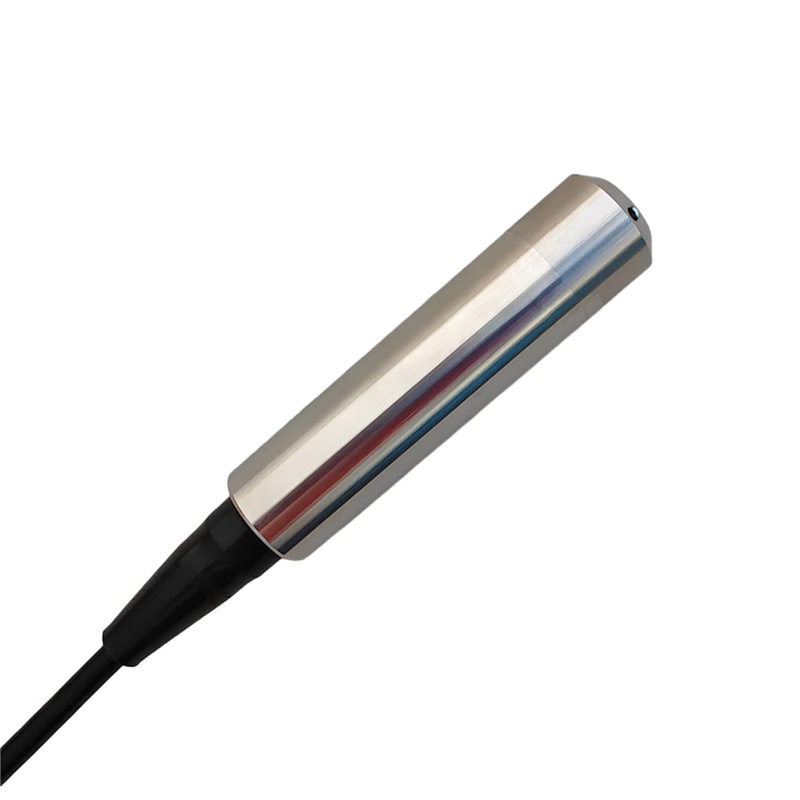

DigiLL Digital Liquid Level Sensor, SDI12, RS485 Interface

　The DigiLL digital liquid level sensor integrates a high-precision liquid level measurement unit. With a compact size, it is widely used in long-term continuous monitoring of sea level measurement, irrigation equipment, deep well and groundwater monitoring, surface water, etc.

　The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use a RS485 physical interface for applications that require long cable runs or many sensors.

Features:

■ Integrated high-precision liquid level measurement unit, with multiple range available

■ Fully sealed waterproof design, waterproof rating of IP68

■ Small in size, low power consumption

■ High precision, fast response, good interchangeability and reliable performance

■ Submersible installation or installation in pipelines and tanks

■ RS485 or SDI-12 communication interface with surge protection

■ Low power consumption

■ Reverse power protection and Built-in TVS/ESD protection

■ ODM/OEM

?

Applications:

■ Irrigation Equipment

■ Sea Water Level Measurement and Control

■ Deep Well and Groundwater Monitoring

■ Vessel and Storage Monitor Systems

■ Control of Lift and Pumping Stations

■ Surface Water Monitoring

■ Dewatering

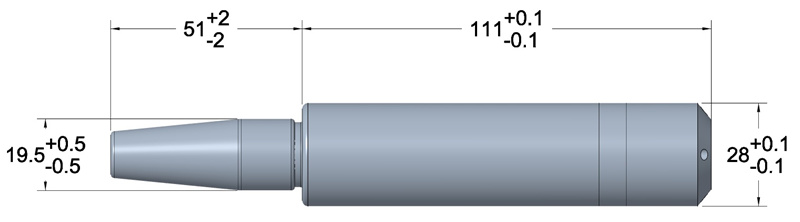

Dimension:

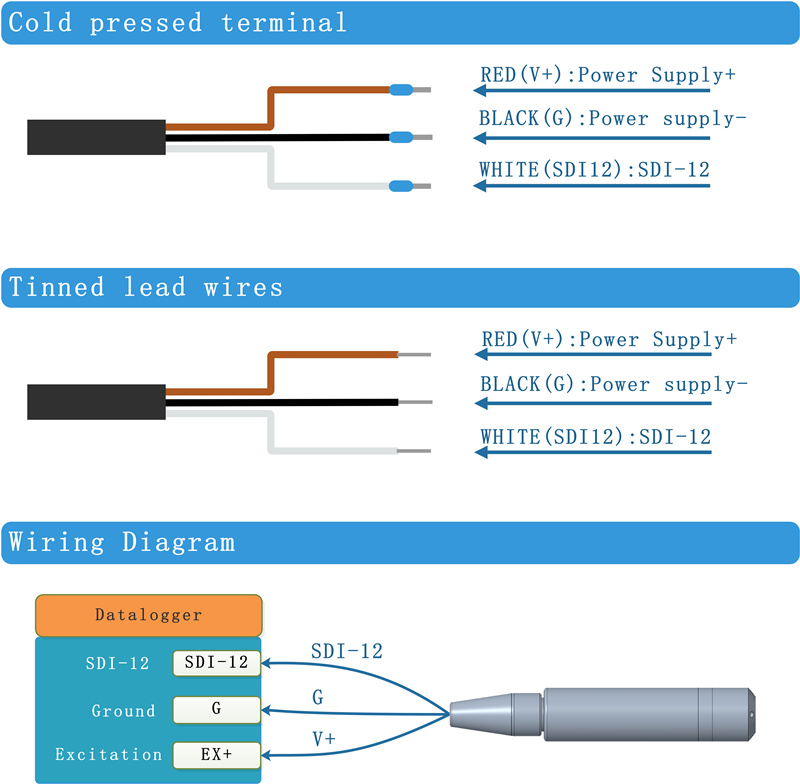

SDI-12 Interface:

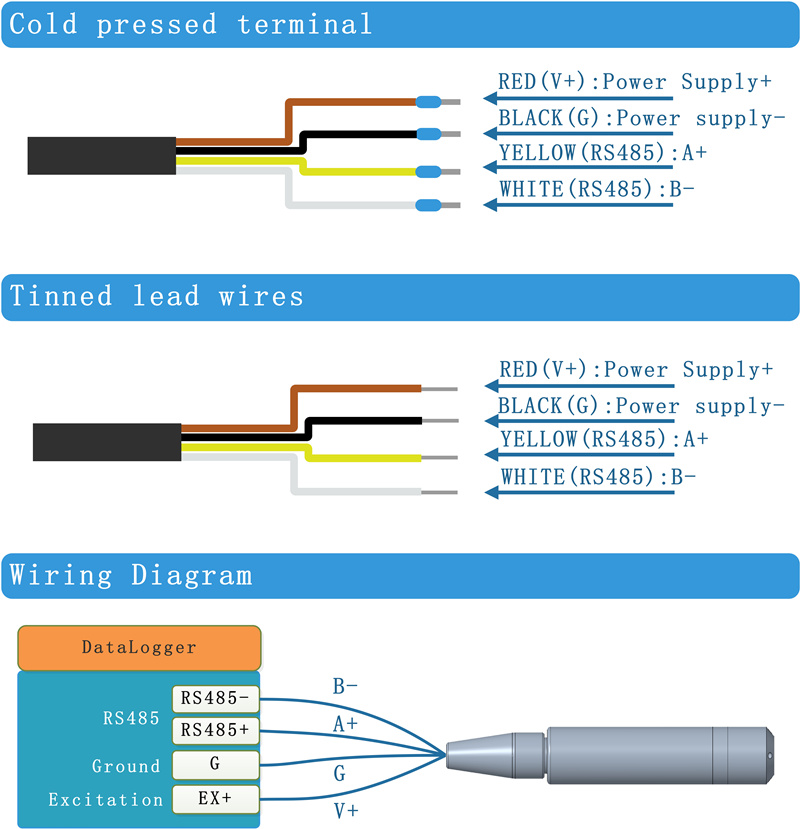

RS485 Interface:
