DigiTHP-Air Humidity, Temperature, Dew Point and Barometric Pressure Sensor, RS485, Modbus

DigiTHP-Air Humidity, Temperature, Dew Point and Barometric Pressure Sensor, RS485, Modbus

View:2368 Category:Air Humidity & Temperature & Barometric Pressure Category:Measurements Category:Products

请联系我们咨询

DigiTHP is an air humidity, temperature and barometric pressure sensor with RS485 modbus interface. The sensing elements are located on a PCB in the tip of the sensor. The acquisition circuit is completely over-moulded. Temperature and humidity sesor is based on based on a precision SENSIRION? sensor. An additional BOSCH?MEMS chip measures barometric pressure. Each sensor is individually factory-calibrated. With dimensions of only 108mm x 16mm, the sensor can easily be fitted into many standard radiation shields and field application.



Resources
User Manual UM-DigiTHP Air Humidity, Temperature and Barometric Pressure Sensor
Software SensorOneSet-EN

DigiTHP is an air humidity, temperature and barometric pressure sensor with RS485 modbus interface. The sensing elements are located on a PCB in the tip of the sensor. The acquisition circuit is completely over-moulded. Temperature and humidity sesor is based on based on a precision SENSIRION? sensor. An additional BOSCH?MEMS chip measures barometric pressure. Each sensor is individually factory-calibrated. With dimensions of only 108mm x 16mm, the sensor can easily be fitted into many standard radiation shields and field application.



■ Air humidity, temperature, dew point and barometric pressure sensor

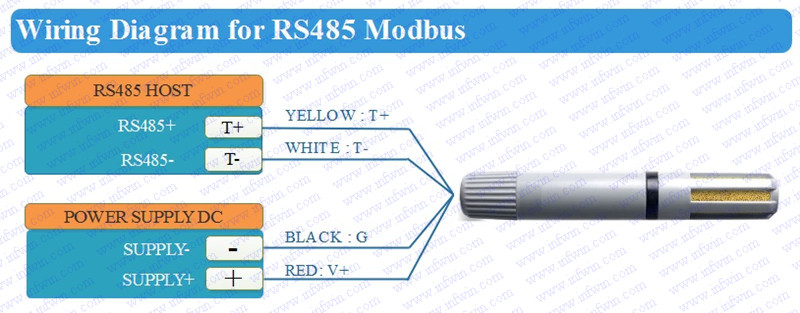

■ RS485 modbus-RTU interface

■ Small size with high accuracy with excellent stability

■ Cleanable 10um Copper sintering filter cap

■ Wall mounting or Pipe flange insertion installation

■ Reverse power protection and Built-in TVS/ESD protection

■ Excellent price-performance ratio



Specification
Output Interface RS485, Modbus-RTU
Power supply 3.6-24V DC or 2.7-16V DC
Power Consumption 4mA@24V DC
Humidity Range:0-100%, Resolution:0.01%, Accuracy:+/-1.8% RH(SENSIRION? SHT25)

Range:0-100%, Resolution:0.01%, Accuracy:+/-2% RH(SENSIRION? SHT21)

Range:0-100%, Resolution:0.01%, Accuracy:+/-3% RH(SENSIRION? SHT20)

Temperature Range:-40~80℃, Resolution:0.01℃, Accuracy: +/-0.2℃(SENSIRION? SHT25)

Range:-40~80℃, Resolution:0.01℃, Accuracy: +/-0.3℃(SENSIRION? SHT21)

Range:-40~80℃, Resolution:0.01℃, Accuracy: +/-0.3℃(SENSIRION? SHT20)

Barometric Range: 300-1100mbar

Resolution:0.1mbar

Accuracy:+/-0.15mbar(Relative Accuracy),+/-1mbar(Absolute Accuracy)

IP Rating IP56
Operating Temperature -40~85℃
Installation Wall mounting or Pipe flange insertion
Cable Length 2 meters, or Customize

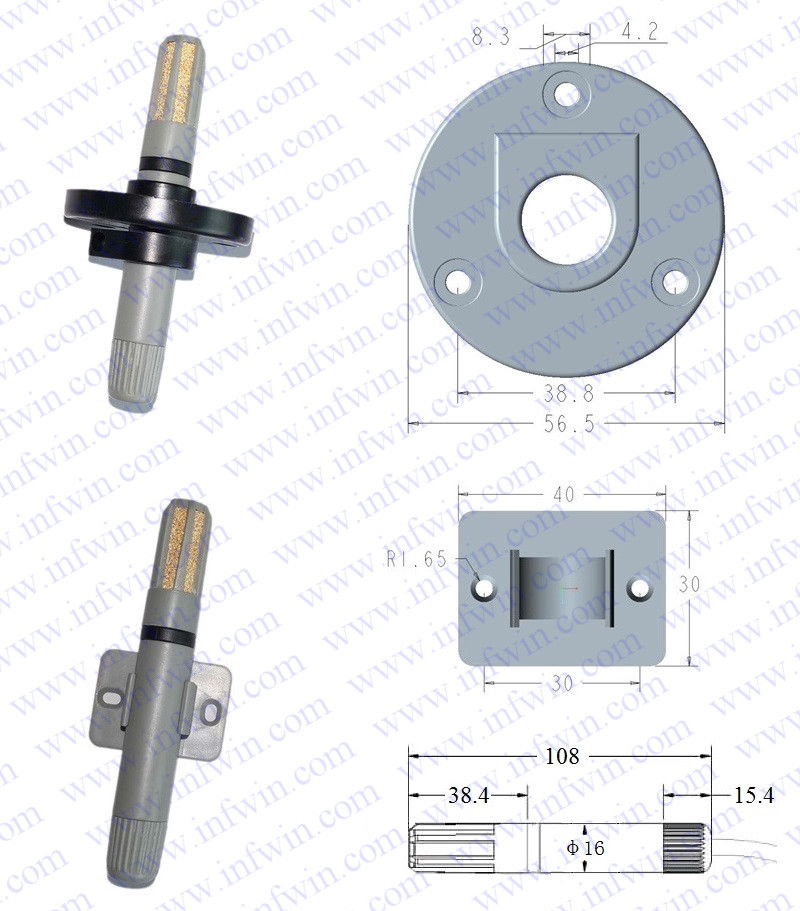

Dimension Sensor Body 108*16mm



Parameters Code Comments
Code 1:Product Series DigiTHP DigiTHP sensor
Code 2:Measuring Parameters A Air humidity, temperature , dew point and barometric pressure
Code 3:Temperature Accuracy A

B

C

-40-80℃, +/-0.3℃ (SENSIRION? SHT20)

-40-80℃, +/-0.3℃ (SENSIRION? SHT21)

-40-80℃, +/-0.2℃ (SENSIRION? SHT25)

Code 4:Humidity Accuracy A

B

C

0-100%RH, +/-3%? (SENSIRION? SHT20)

0-100%RH, +/-2%? (SENSIRION? SHT21)

0-100%RH, +/-1.8% ?(SENSIRION? SHT25)

Code 5:Barometric Accuray A 300-1100mbar, +/-0.15mbar(Relative Accuracy),+/-1mbar(Absolute Accuracy)
Code 6:Power Supply A

B

3.6-24V DC

2.7-16V DC

Code 7: Output Interface A

C

RS485, Modbus RTU

Customize

Code 8: Cable Length 002

XXX

2 meters

Customize, XXX is required cable length(Unit: meter)

Ordering Code Example:

DigiTHP sensor with Air humidity, temperature and barometric pressure ,dew point, Temperature Accuracy -40-80℃, +/-0.3℃, Humidity Accuracy 0-100%RH, +/-3%, Barometric Accuray 300-1100mbar, +/-0.15mbar(Relative Accuracy),+/-1mbar(Absolute Accuracy) , Power Supply 3.6-24V DC, Output Interface RS485 Modbus-RTU, Cable Length 5 meters. Ordering Code is : DigiTHP – A A A A A A 005
