DigiTH-Air Humidity, Temperature and Dew Point Sensor, RS485, Modbus

Time:2019/02/16 View:2099 Category:Air Humidity & Temperature Category:Measurements Category:Products

请联系我们咨询

DigiTH is an air humidity, temperature and dew point sensor with RS485 modbus interface. The sensing elements are located on a PCB in the tip of the sensor. The acquisition circuit is completely over-moulded. Temperature and humidity sesor is based on a precision SENSIRION? sensor. Each sensor is individually factory-calibrated.With dimensions of only 108mm x 16mm, the sensor can easily be fitted into many standard radiation shields and field application.

■ Air humidity and temperature sensor with dew point

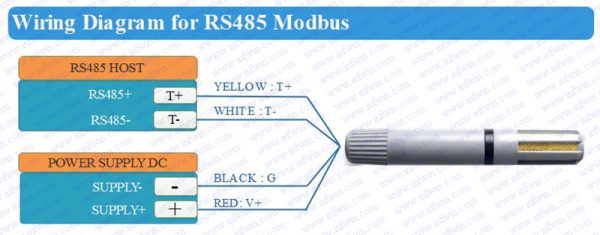

■ RS485 modbus-RTU interface

■ Small size with high accuracy with excellent stability

■ Cleanable 10um copper sintering filter cap

■ Wall mounting or pipe flange insertion installation

■ Reverse power protection and Built-in TVS/ESD protection

■ Excellent price-performance ratio

Specification
Output Interface	RS485, Modbus-RTU
Power supply	3.6-24V DC
Power Consumption	4mA@24V DC
Humidity	Range:0-100%, Resolution:0.01%, Accuracy:+/-1.8% RH(SENSIRION? SHT25) Range:0-100%, Resolution:0.01%, Accuracy:+/-2% RH(SENSIRION? SHT21) Range:0-100%, Resolution:0.01%, Accuracy:+/-3% RH(SENSIRION? SHT20)
Temperature	Range:-40~80℃, Resolution:0.01℃, Accuracy: +/-0.2℃(SENSIRION? SHT25) Range:-40~80℃, Resolution:0.01℃, Accuracy: +/-0.3℃(SENSIRION? SHT21) Range:-40~80℃, Resolution:0.01℃, Accuracy: +/-0.3℃(SENSIRION? SHT20)
IP Rating	IP56
Operating Temperature	-40~85℃
Installation	Wall mounting or Pipe flange insertion
Cable Length	2 meters, or Customize

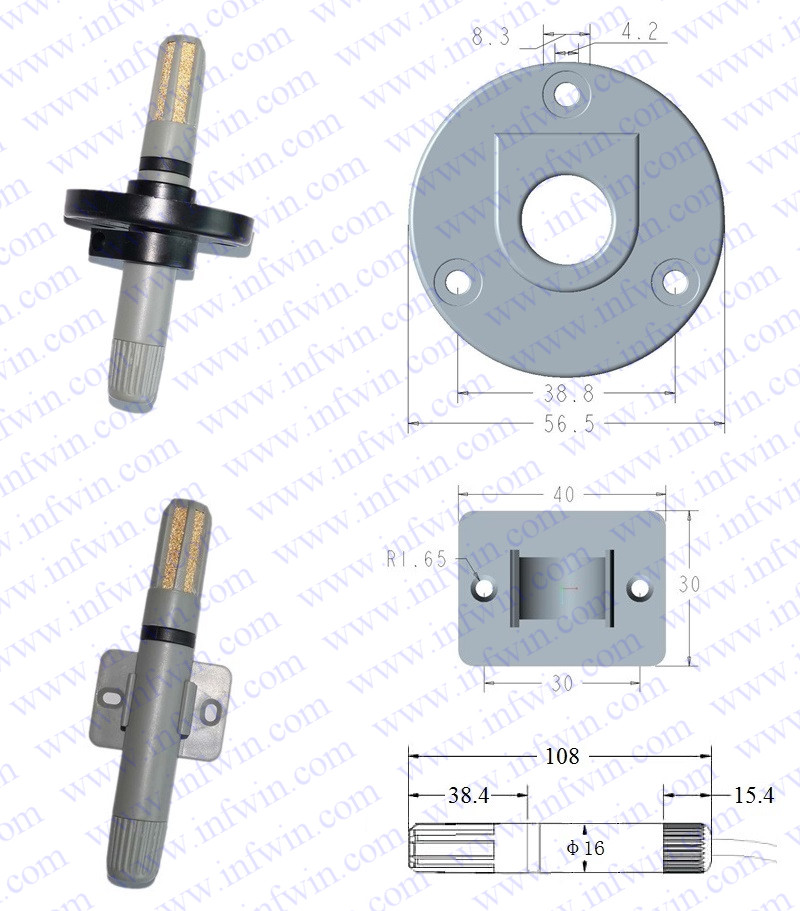

Dimension	Sensor Body 108*16mm

Parameters	Code	Comments
Code 1:Product Series	DigiTH	DigiTH sensor
Code 2:Measuring Parameters	A	Air humidity, temperature and dew point
Code 3:Temperature Accuracy	A B C	-40-80℃, +/-0.3℃ (SENSIRION? SHT20) -40-80℃, +/-0.3℃ (SENSIRION? SHT21) -40-80℃, +/-0.2℃ (SENSIRION? SHT25)
Code 4:Humidity Accuracy	A B C	0-100%RH, +/-3%? (SENSIRION? SHT20) 0-100%RH, +/-2%? (SENSIRION? SHT21) 0-100%RH, +/-1.8% ?(SENSIRION? SHT25)
Code 5:Power Supply	A	3.6-24V DC
Code 6: Output Interface	A C	RS485, Modbus-RTU Customize
Code 7: Cable Length	002 XXX	2 meters Customize, XXX is required cable length(Unit: meter)
Ordering Code Example: DigiTH sensor with Air humidity, temperature and dew point, Temperature Accuracy -40-80℃, +/-0.3℃, Humidity Accuracy 0-100%RH, +/-3%, Power Supply 3.6-24V DC, Output Interface RS485 Modbus-RTU, Cable Length 5 meters. Ordering Code is : DigiTH – A A A A A 005
