LWS10-Leaf Wetness Sensor, RS485, Modbus

LWS10-Leaf Wetness Sensor, RS485, Modbus

View:1334 Category:Leaf Wetness Category:Measurements Category:Products

请联系我们咨询

LWS10 measures leaf wetness. It sealed with resin packaged plastic body can be used for long time monitor. Wetness measurement value is proportional to the percentage of sensing area covered with water. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for science research, bacteria prevention, foliage dressing spraying, greenhouse, smart agriculture etc.

LWS10 measures leaf wetness. It sealed with resin packaged plastic body can be used for long time monitor. Wetness measurement value is proportional to the percentage of sensing area covered with water. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for science research, bacteria prevention, foliage dressing spraying, greenhouse, smart agriculture etc.

?

■ Integrated with leaf wetness and temperature measurement

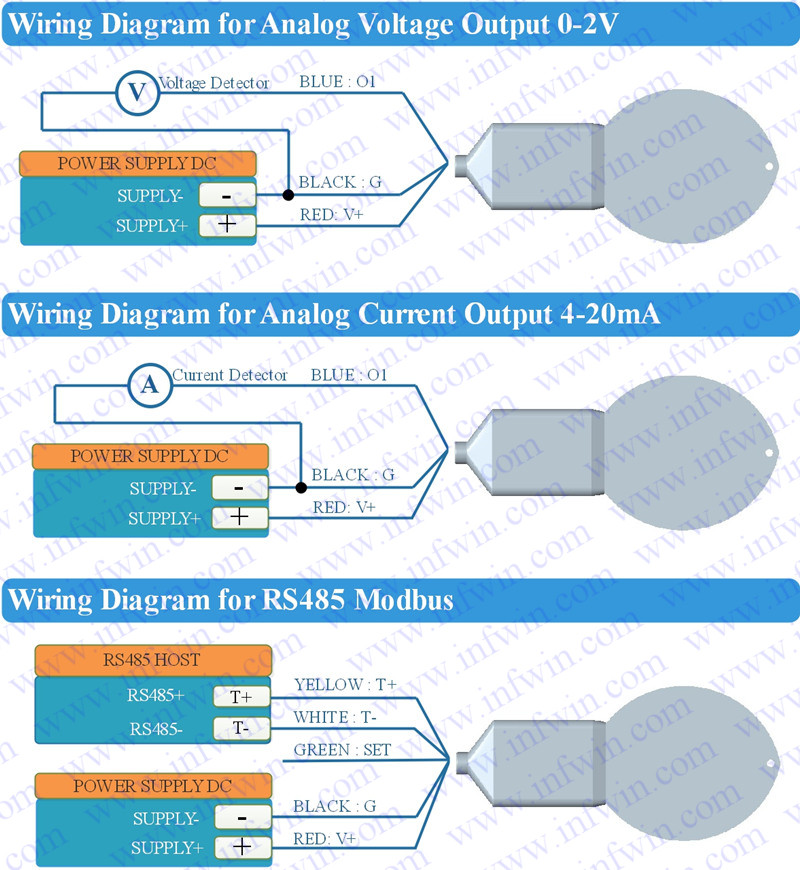

■ Output Interface with RS485, Voltage, Current

■ Mimics the real leaf thermal resistance by sensing shape and thickness

■ Water, ice, foggy detection

■ Water proof to IP68 ratings

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection



Specifications
Output Interface Analog Voltage 0-2V

(Output resistance ~0ohm)

Analog Current 4-20mA

(Load Resistor<500ohm)

RS485

Modbus-RTU

Power Supply 3.6-30V/DC 12-30V/DC 3.6-30V/DC
Power Consumption 6mA@24V DC 30mA@24V DC

(with 20mA output signal)

6mA@24V DC
Leaf wetness Measurement Range: 0-100%, Resolution: 0.1%, Accuracy:5%
Temperature Compensation Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃
Measurement Technique FDR
IP Ratings IP68
Operating Temperature -40~85℃
Sensor Sealed Epoxy resin
Installation Mounting kit
Cable Length 2 meters or Customize
Dimension 65*13*145mm



Parameters Code Comments
Code 1:

Product Series

LWS10 LWS10 leaf wetness and temperature Sensor
Code 2:

Output Interface

A

B

C

D

E

F

G

Analog Voltage 0-2V

Analog Current 4-20mA

RS485,Modbus-RTU

RS485,Modbus-RTU & Analog Voltage 0-2V

RS485,Modbus-RTU & Analog Current 4-20mA

SDI-12 (not available for now)

Customize

Code 3:

Power Supply

A

B

C

D

E

3.6-30V DC (not applicable for 4-20mA output)

12-30V DC

2.7-16V DC (not available for now)

Customize

2.0-5.5V DC (not available for now)

Code 4:

Cable Length

002

XXX

2 meters

Customize, XXX is required cable length(Unit: meter)

Ordering Code Example:

Leaf wetness and temperature sensor, Output Interface RS485 Modbus RTU, Power Supply 3.6-30V DC, Cable Length 5 meters. Ordering Code is : LWS10 – C A 005
