ORP10-Oxidation Reduction Potential (ORP) Transmitter, RS485, Modbus

ORP10-Oxidation Reduction Potential (ORP) Transmitter, RS485, Modbus

View:4541 Category:Measurements Category:ORP Category:Products

请联系我们咨询

Oxidation Reduction Potential (ORP) is a measurement of sanitizer effectiveness in water. ORP is an electronic measurement in millivolts (mV) of the ability of a chemical substance to oxidize or reduce another chemical substance. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc.



Resources
User Manual UM-ORP10 Oxidation Reduction Potential Transmitter
Software SensorOneSet-EN

Oxidation Reduction Potential (ORP) is a measurement of sanitizer effectiveness in water. ORP is an electronic measurement in millivolts (mV) of the ability of a chemical substance to oxidize or reduce another chemical substance. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc.

?

■ ORP measurement

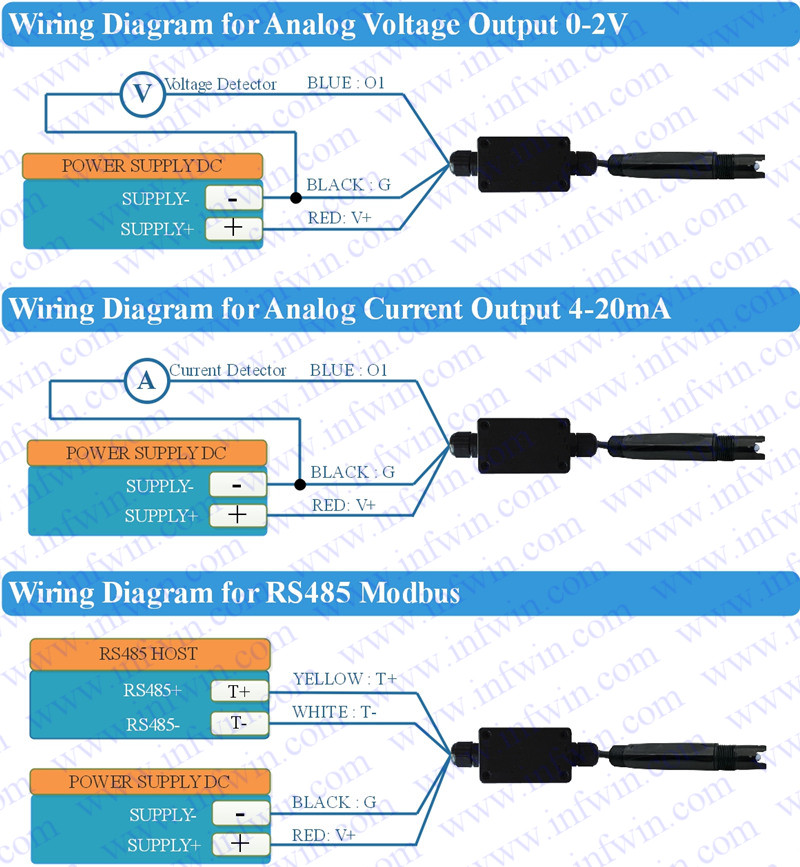

■ Output Interface with RS485, Voltage, Current

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection



Specifications
Output Interface Analog Voltage 0-2V

(Output resistance ~0ohm)

Analog Current 4-20mA

(Load Resistor<500ohm)

RS485

Modbus-RTU

Power Supply 3.9-30V/DC 12-30V/DC 3.9-30V/DC
Power Consumption 10mA@24V DC 30mA@24V DC

(with 20mA output signal)

10mA@24V DC
ORP Measurement Range:+/-2000mV,Resolution:1mV,Accuracy:±2%
IP Ratings Electrode:IP68

Transmitter:IP65

Operating Temperature -40~85℃
Installation Electrode:3/4″NPT screw threads

Transmitter:Mounting hole

Cable Length Power and Signal Cable:2 meters or Customize

Electrode Cable:5 meters

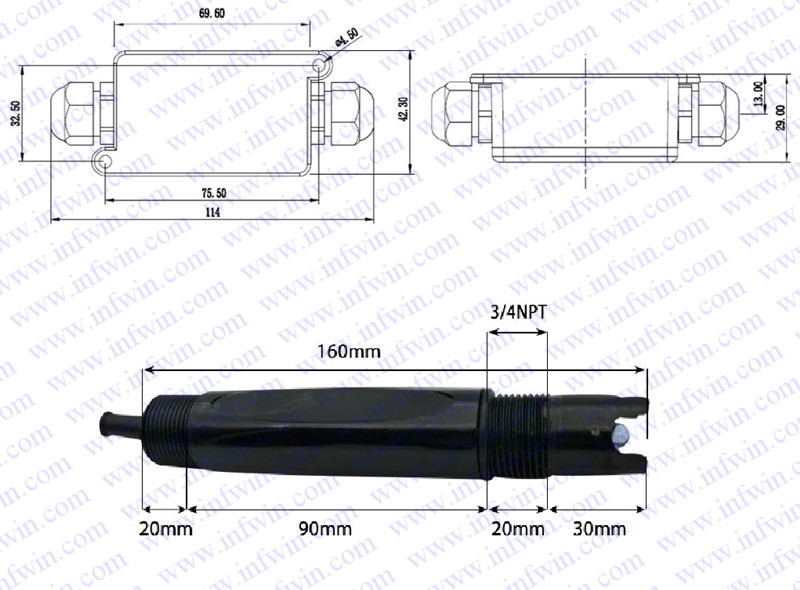

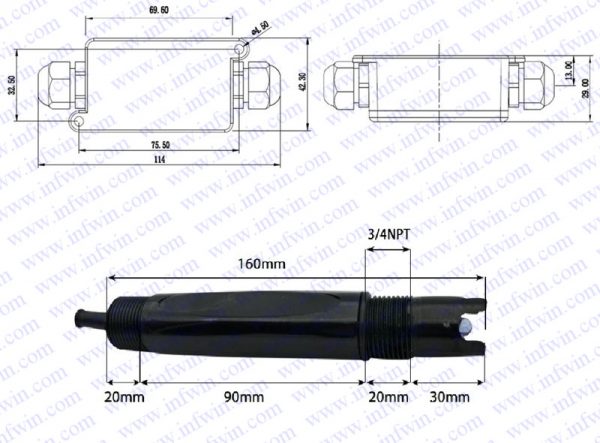

Dimension Electrode:3/4″NPT screw threads

Transmitter:128*70*42mm



Parameters Code Comments
Code 1:

Product Series

ORP10 ORP10 transmitter
Code 2:

Power Supply

A

B

3.9-30V DC

3.3-16V

Code 3:

ORP Range

A

B

C

+/-2000mV

+/-1000mV

Customize

Code 4:

Output Interface

A

B

C

D

E

F

G

Analog Voltage 0-2V

Analog Current 4-20mA

RS485,Modbus-RTU

RS485,Modbus-RTU & Analog Voltage 0-2V

RS485,Modbus-RTU & Analog Current 4-20mA

SDI-12

Customize

Code 5:

Cable Length

002

XXX

Electrode Cable:5 meters , Power and Signal Cable:2 meters

Electrode Cable:5 meters , Power and Signal Cable:xxx meters

Ordering Code Example:

ORP10 transmitter Power Supply 3.9-30V DC, ORP Range +/-2000mV, Output Interface RS485, Modbus-RTU, Power and Signal Cable Length 5 meters. Ordering Code is : ORP10 – A A C 005
