MEC10-Soil Moisture, EC and Temperature Sensor, RS485, Modbus
View:11813 Category:Products Category:Soil Moisture & Temperature & EC Category:Soil Salinity Category:Soil Science
MEC10 measures soil moisture content, EC and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
Resources | |
User Manual | UM-MEC10 Soil Moisture, EC and Temperature Sensor |
Software | SensorOneSet-EN |
MEC10 measures soil moisture content, EC and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
■ Integrated with Soil Moisture, EC, Temperature measurement

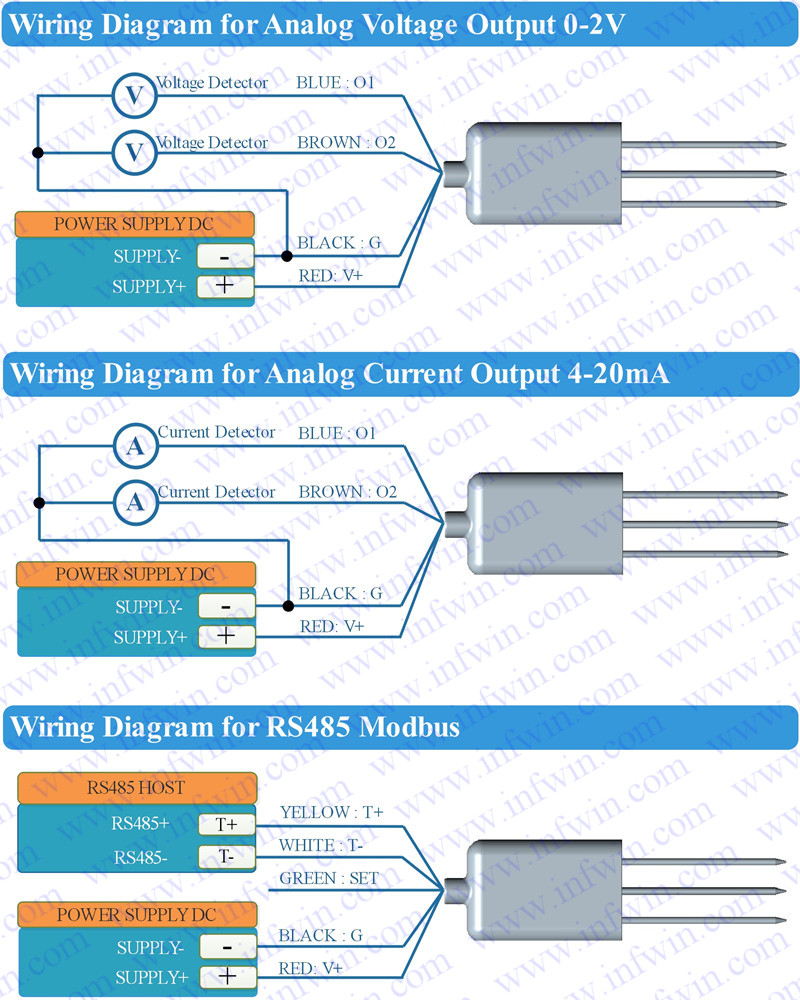

■ Output Interface with RS485, Voltage, Current
■ Low salinity sensitivity
■ Minimal soil disturbance
■ Water proof to IP68 ratings and can be directly buried into soil
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
Specifications | |||
Output Interface | Analog Voltage 0-2V
(Output resistance ~0ohm) |
Analog Current 4-20mA
(Load Resistor<500ohm) |
RS485
Modbus-RTU |
Power Supply | 3.6-30V/DC | 12-30V/DC | 3.6-30V/DC |
Power Consumption | 6mA@24V DC | 50mA@24V DC
(with 2*20mA output signal) |
6mA@24V DC |
Soil Moisture Measurement | Range:0-50%,0-100%
Resolution:0-50%:0.03%,50-100%:1% Accuracy:0-50%:3%,50-100%:5% |
||
EC Measurement | Range: 0-5000us/cm, 10000us/cm, 20000us/cm
Resolution: 0-10000us/cm, 10us/cm; 100000-20000us/cm, 50us/cm Accuracy: 0-10000us/cm, ±3%; 10000-20000us/cm, ±5% EC temperature compensation: 0-50℃ |
||
Temperature Measurement | Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃ | ||
Measurement Technique | Moisture by FDR and EC by AC excitation | ||
IP Ratings | IP68 | ||
Operating Temperature | -40~85℃ | ||
Sensor Rod | Stainless steel | ||
Sensor Sealed | Epoxy resin | ||
Installation | Surface or buried installation | ||
Cable Length | 2 meters or Customize | ||

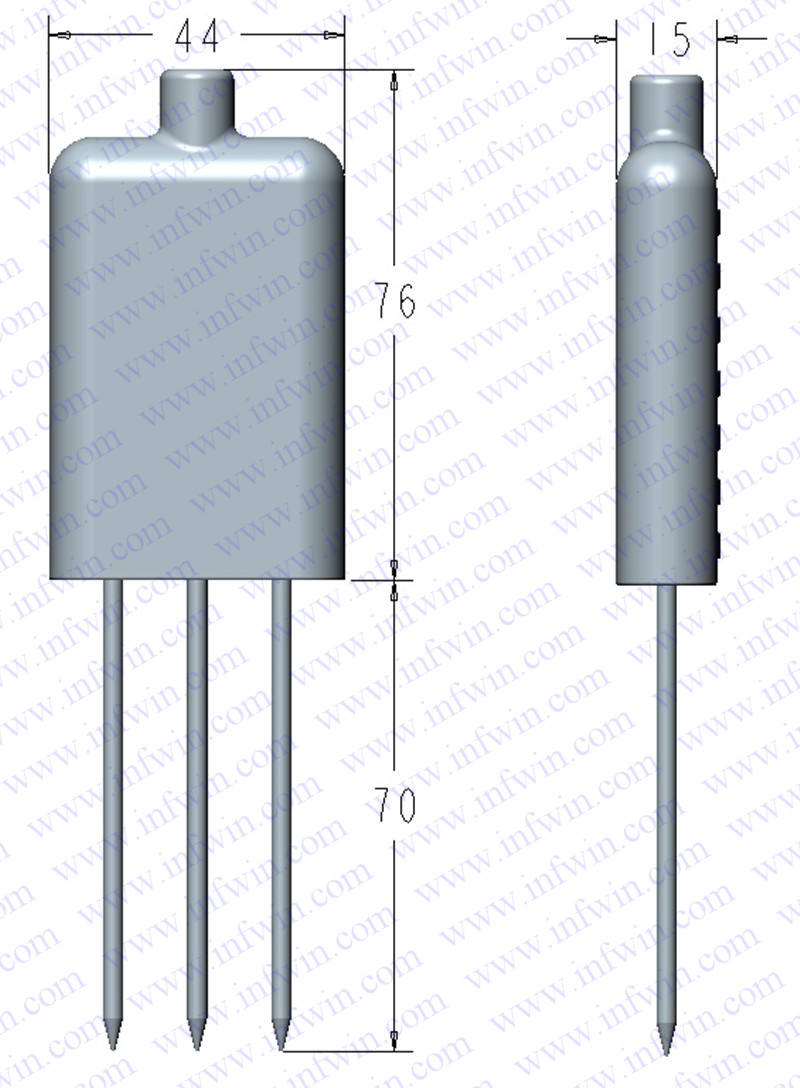

Dimension | 44*15*146mm |
Parameters | Code | Comments |
Code 1:
Product Series |
MEC10 | MEC10 Soil Moisture, EC, Temperature Sensor |
Code 2:
Measuring Parameters |
A
B C |
Soil Moisture & Temperature & EC (only for RS485 output)
Soil Moisture & EC Customize |
Code 3:
Soil Moisture Range |
A
B |
0-50%
0-100% |
Code 4:
EC Range |
A
B C D |
0-5000us/cm
0-10000us/cm 0-20000us/cm Customize |
Code 5:
Power Supply |
A
B C D E |
3.6-30V DC (not applicable for 4-20mA output)
12-30V DC 2.7-16V DC (not applicable for 4-20mA output) Customize 2.0-5.5V DC (not applicable for 4-20mA output) |
Code 6:
Output Interface |
A
B C D E F G |
Analog Voltage 0-2V
Analog Current 4-20mA RS485,Modbus-RTU RS485,Modbus-RTU & Analog Voltage 0-2V RS485,Modbus-RTU & Analog Current 4-20mA SDI-12 Customize |
Code 7:
Cable Length |
002
XXX |
2 meters
Customize, XXX is required cable length(Unit: meter) |
Ordering Code Example:
MEC10 Sensor with Soil Moisture & EC & Temperature parameters, Soil Moisture Range 100%, Soil EC Range 20000us/cm, Power Supply 3.6-30V DC, Output Interface RS485, Modbus-RTU, Cable Length 5 meters. Ordering Code is : MEC10 – A B C A C 005 |
