PH10-PH Transmitter, RS485, Modbus

PH10-PH Transmitter, RS485, Modbus

View:1749 Category:Measurements Category:PH Category:Products

请联系我们咨询

PH10 transmitter measures the PH of solution or wet soil or other substrate. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc.

PH10 transmitter measures the PH of solution or wet soil or other substrate. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc.

?

■ PH measurement with temperature compensation

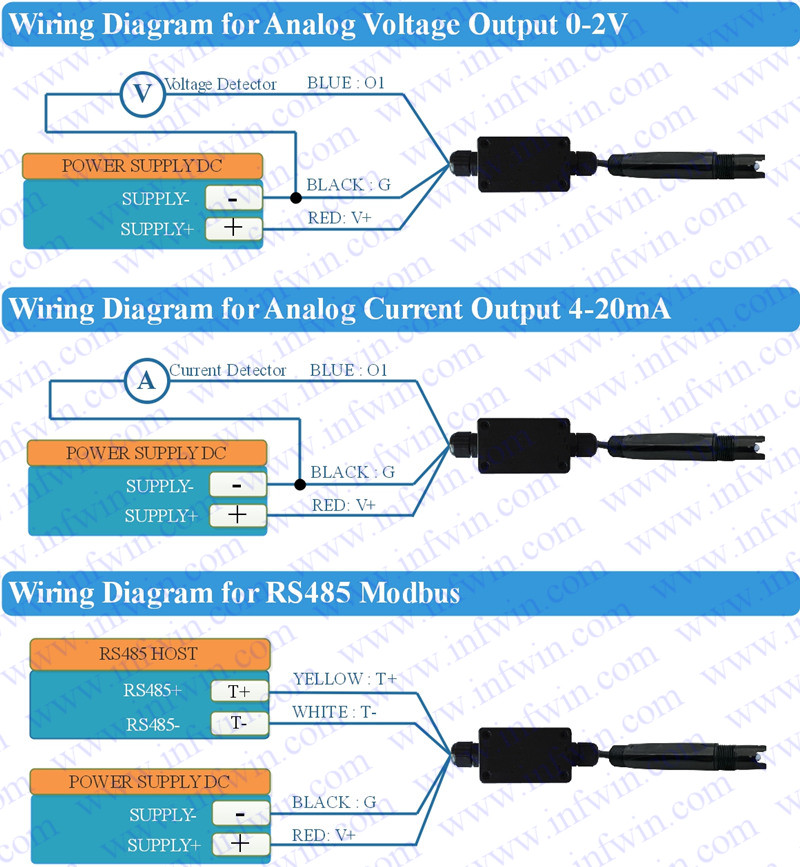

■ Output Interface with RS485, Voltage, Current

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection



Specifications
Output Interface Analog Voltage 0-2V

(Output resistance ~0ohm)

Analog Current 4-20mA

(Load Resistor<500ohm)

RS485

Modbus-RTU

Power Supply 3.9-30V/DC 12-30V/DC 3.9-30V/DC
Power Consumption 6mA@24V DC 30mA@24V DC

(with 20mA output signal)

6mA@24V DC
PH Measurement Range:0-14PH,Resolution:0.01PH,Accuracy:±0.1PH
Temperature Measurement Range:-40~80℃,Resolution:0.1℃,Accuracy:±0.5℃

(on board temperature sensor)

IP Ratings Electrode:IP68

Transmitter:IP65

Operating Temperature -40~85℃
Installation Electrode:3/4″NPT screw threads

Transmitter:Mounting hole

Cable Length Power and Signal Cable:2 meters or Customize

Electrode Cable:5 meters

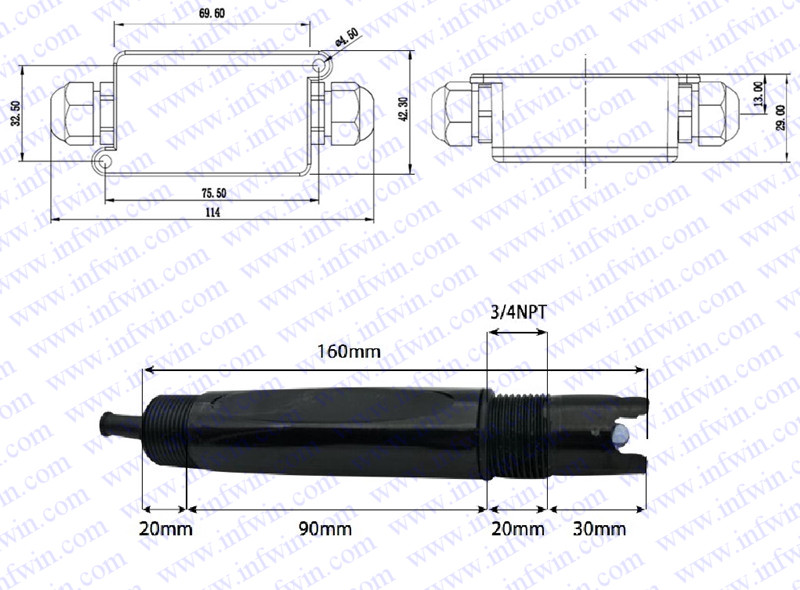

Dimension Electrode:3/4″NPT screw threads

Transmitter:128*70*42mm



Parameters Code Comments
Code 1:

Product Series

PH10



PH10 transmitter
Code 2:

Power Supply

A

B

3.9-30V DC

3.3-16V

Code 3:

Output Interface

A

B

C

D

E

F

G

Analog Voltage 0-2V

Analog Current 4-20mA

RS485,Modbus-RTU

RS485,Modbus-RTU & Analog Voltage 0-2V

RS485,Modbus-RTU & Analog Current 4-20mA

SDI-12

Customize

Code 4:

Cable Length

002

XXX

Electrode Cable:5 meters , Power and Signal Cable:2 meters

Electrode Cable:5 meters , Power and Signal Cable:xxx meters

Ordering Code Example:

PH10 transmitter Power Supply 3.9-30V DC, Output Interface RS485, Modbus-RTU, Power and Signal Cable Length 5 meters. Ordering Code is : PH10 – A C 005
