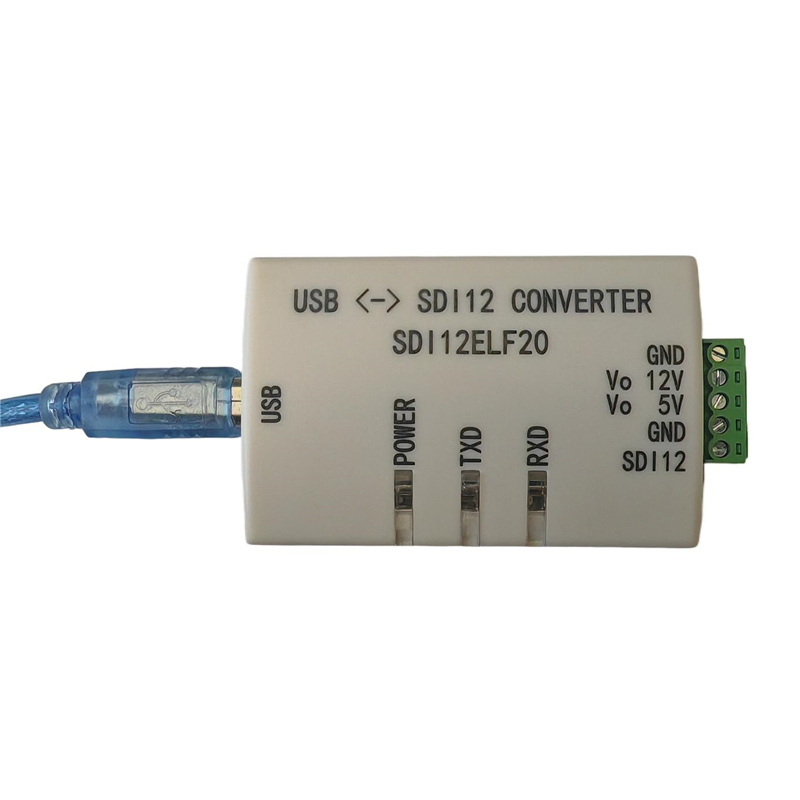

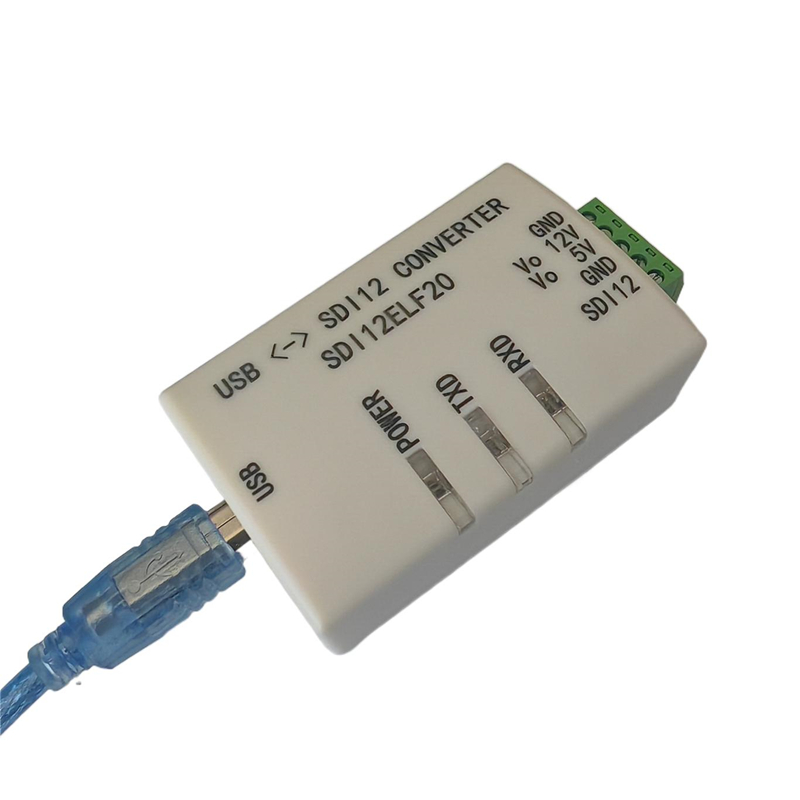

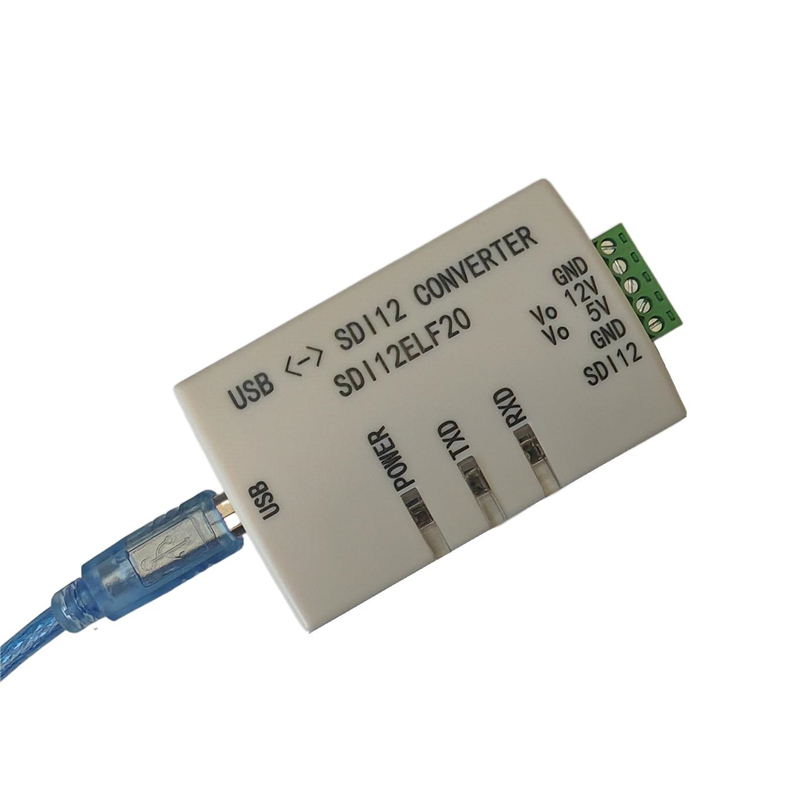

SDI12ELF20 SDI-12 to USB Converter

SDI12ELF20 SDI-12 to USB Converter

View:213 Category:Products Category:SDI-12 Converter Category:SDI-12 Products

Please Contact us for more infomation

 The SDI12ELF20 implements a plug-and-play solution for connecting SDI-12 sensors to personal computers for controlling or testing devices with SDI-12 interface. The SDI12ELF20 is a communication conversion device used to connect the USB master device and the SDI-12 device. The USB master device can be a host that supports the USB interface, such as a computer or Raspberry PI, and the SDI-12 sensor can be a smart sensor device that supports the SDI-12 interface. The SDI12ELF20 can be used for system integration, sensor testing, or data acquisition systems based on SDI-12 sensors.



Resources
User Manual SDI12ELF20 SDI-12 to USB Converter User Manual
USB Driver USB Driver
Testing Software Terminal v1.9b by br@y++(Terminal20141030)





 The SDI12ELF20 implements a plug-and-play solution for connecting SDI-12 sensors to personal computers for controlling or testing devices with SDI-12 interface. The SDI12ELF20 is a communication conversion device used to connect the USB master device and the SDI-12 device. The USB master device can be a host that supports the USB interface, such as a computer or Raspberry PI, and the SDI-12 sensor can be a smart sensor device that supports the SDI-12 interface. The SDI12ELF20 can be used for system integration, sensor testing, or data acquisition systems based on SDI-12 sensors, with the following features:



SDI-12 to USB communication interface

SDI-12 communication data transmission and monitoring

USB powered converter does not require additional power supply

Integrated 5V and 12V power output for sensor testing

SDI-12 communication interface with surge and lightning protection

Configurable communication baud rate, parity, stop bit

Configurable SDI-12 protocol BREAK and MARKING time

ODM/OEM service



Application field

SDI-12 data recording

SDI-12 sensor testing

Debugging the SDI-12 interface

SDI-12 installation



Specification

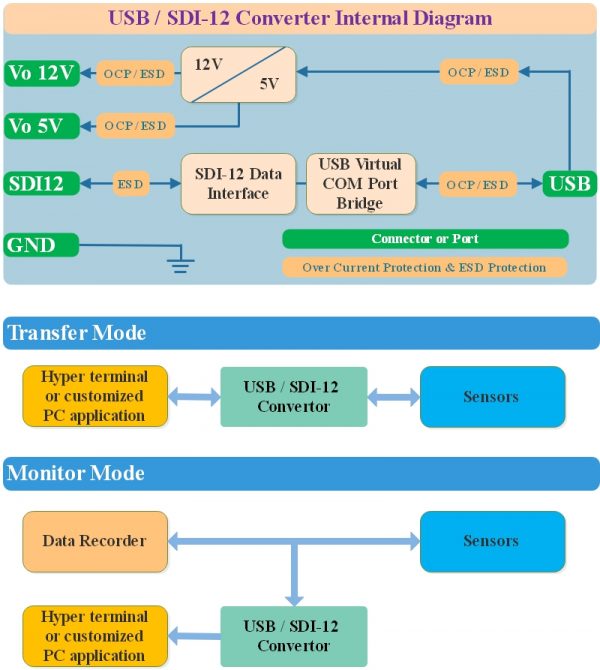

Function Transmission mode and listening mode of SDI-12 bus
USB Interface and power input USB Type-B female connector, Virtual COM interface

TX Buffer: 250 bytes

RX Buffer: 250 bytes

Baudrate: 4800,9600,19200,38400,57600,115200 bps

Parity: none, odd, even

Stop bit: 1 bit, 2 bit

Power Supply +5V,Over current protection

+12V,Over current protection

SDI-12 Interface TX Buffer: 250 bytes

RX Buffer: 250 bytes

Surge and lightning protection

BREAK TIME:Configurable

MARKING TIME:Configurable

IP Rating IP20 NEMA1
Operating Environment -40~85℃
Dimension 81*46*26mm
