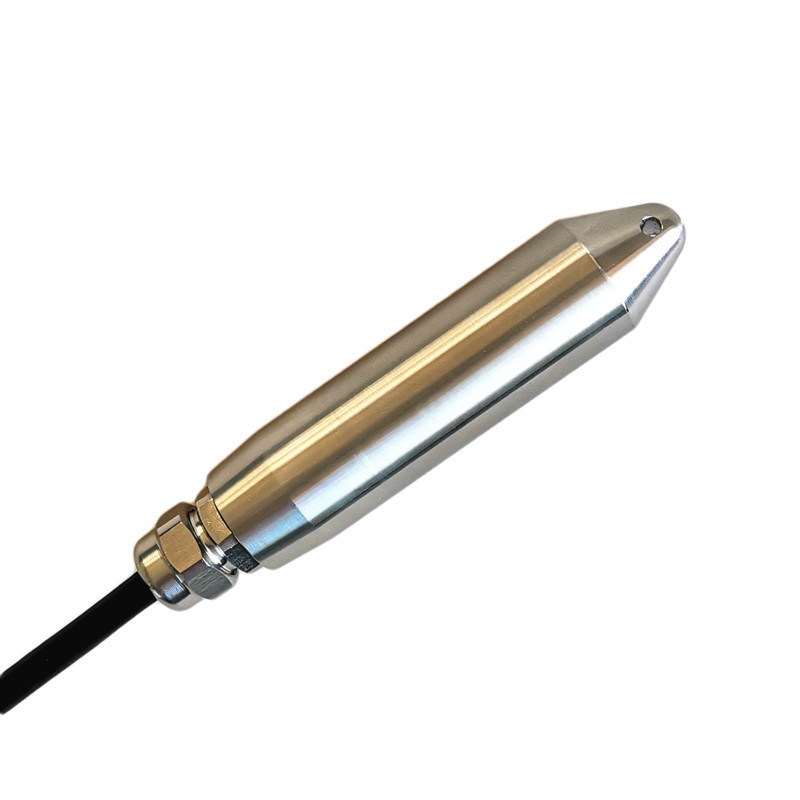

DigiTEMP Rugged Digital Temperature Sensor,SDI-12 Interface,RS485 Modbus-RTU

DigiTEMP Rugged Digital Temperature Sensor,SDI-12 Interface,RS485 Modbus-RTU

View:2362 Category:Products Category:SDI-12 Products Category:SDI-12 Sensors Category:Temperature

Please contact us for more information

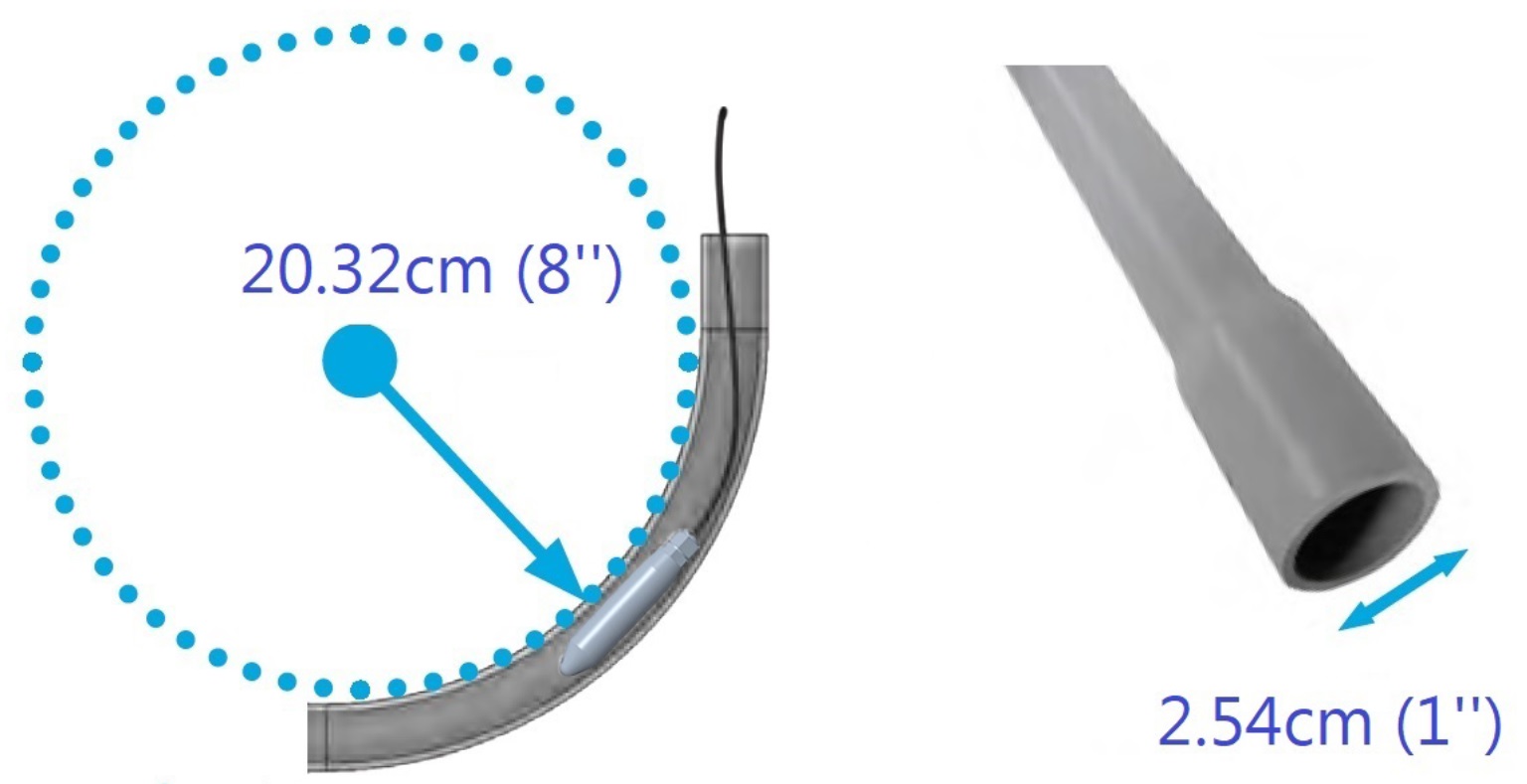

The DigiTEMP is a high precision digital temperature sensor ideal for high-accuracy readings in water, soil, and air. It features fully-potted components, robust stainless steel housing, making the sensor ideal for harsh environments. The sensor is small enough to easily deploy through standard 1” (2.5cm) PVC conduit with 8” (20.3cm) factory bend corners. It also offers a loop hole which can be used to mount weights or pull the sensor through pipes or other small areas.

The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use a RS-485 physical interface for applications that require long cable runs or many sensors.



Resources
User Manual UM-DigiTEMP Rugged Digital Temperature Sensor(RS485,SDI-12)-V1.0
Software SensorOneSet-EN



The DigiTEMP is a high precision digital temperature sensor ideal for high-accuracy readings in water, soil, and air. It features fully-potted components, robust stainless steel housing, making the sensor ideal for harsh environments. The sensor is small enough to easily deploy through standard 1” (2.5cm) PVC conduit with 8” (20.3cm) factory bend corners. It also offers a loop hole which can be used to mount weights or pull the sensor through pipes or other small areas.

The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications, or use a RS-485 physical interface for applications that require long cable runs or many sensors.

Features

■ Integrated with high precision temperature sensor

■ Digital Output SDI-12/RS485 with built-in surge protection

■ Tough UV resistant polyurethane cable with waterblock

■ Stainless steel body with eyelet for weight or pull strings

■ Rugged housing and fully potted electronics – no risk of leaking

■ Low power consumption

■ Reverse power protection and Built-in TVS/ESD protection

■ ODM/OEM Service



Applications

■ Soil Temperature

■ Streams

■ Surface Water

■ Stilling Wells

■ Dams

■ Aquaculture Tanks



Specification
Output Interface Optional: SDI-12, V1.3

Optional: RS485, Modbus-RTU

Power Supply 4.5-18V/DC
Power Consumption SDI-12 Interface: Quiescent Current : <10uA

RS485 Interface: Quiescent Current : <300uA

Measuring Current : 10mA during 50ms measurement

Temperature Measurement Range: 0-70°C, Resolution:0.01°C, Accuracy:+/-0.2°C

Range: -40-80°C, Resolution:0.01°C, Accuracy:+/-0.3°C

Range: -40-125°C, Resolution:0.01°C, Accuracy:+/-0.5°C

Attention: The long term operating temperature is -40~80°C

Operating Temperature -40~80°C
IP Ratings IP68
Sensor Sealed Epoxy resin
Installation Immersed, Surface or buried installation
Cable Length 5 meters or Customize

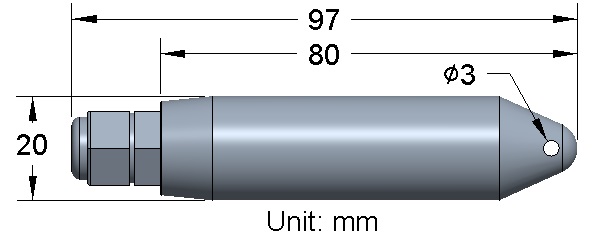

Dimension 95*20mm (Length*Diameter)



Ordering Code
Parameters Code Comments
Code 1:

Product Series

DigiTEMP Rugged digital temperature sensor
Code 2:

Output Interface

A

B

SDI-12

RS485, Modbus-RTU

Code 3:

Power Supply

A

B

4.5-18V DC

Customize

Code 4:

Connector

B

C

Cold pressed terminal

Stripped & tinned lead wires

Code 5:

Cable Length

005

XXX

5 meters

Customize, XXX is required cable length(Unit: meter)

Ordering Code Example:

DigiTEMP Rugged digital temperature sensor, Output interface SDI-12, Power supply 4.5-18V DC,
Cold pressed terminal, Cable length 5 meters. Ordering Code is : DigiTEMP-AAB005

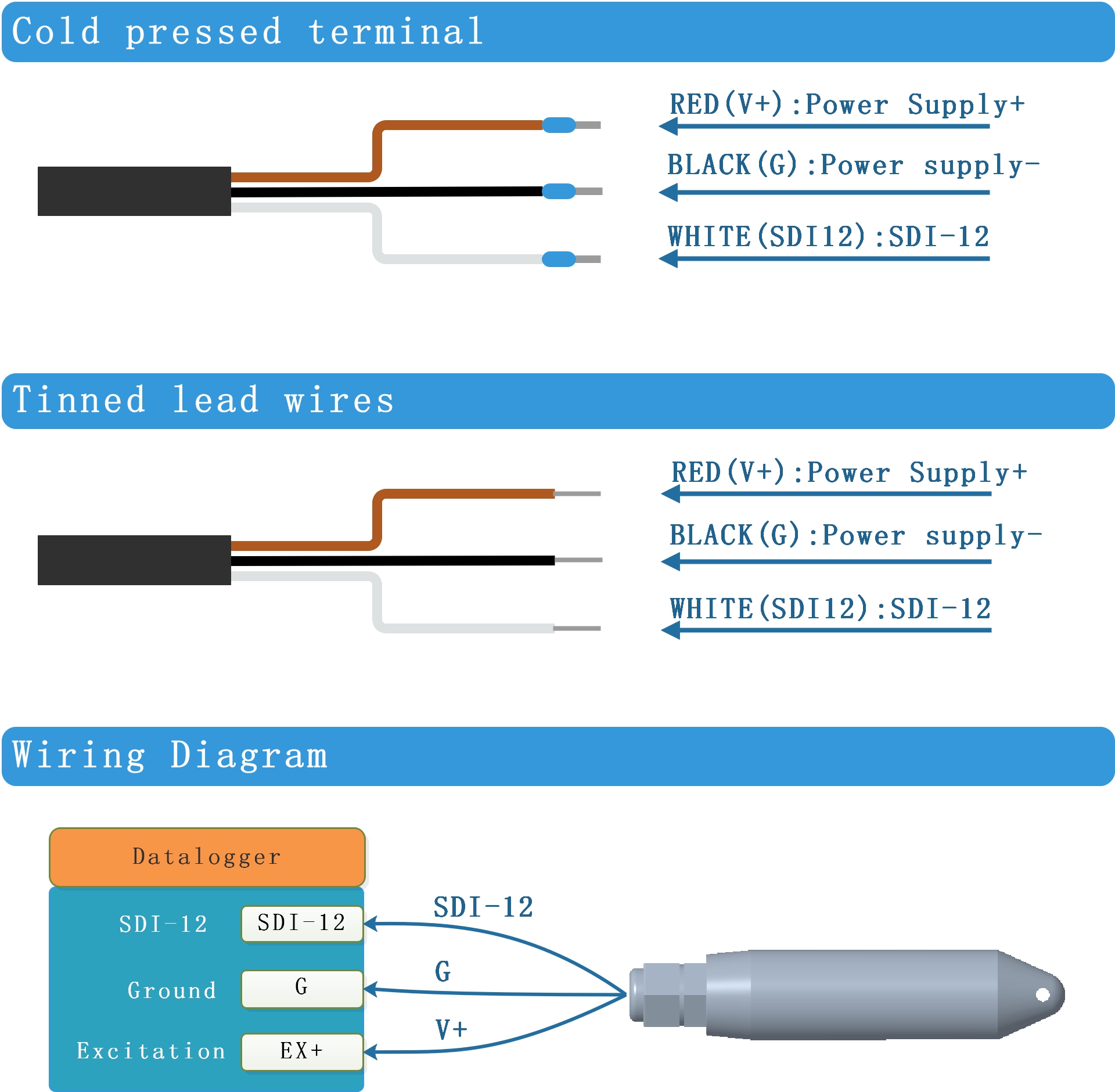

SDI-12 Interface

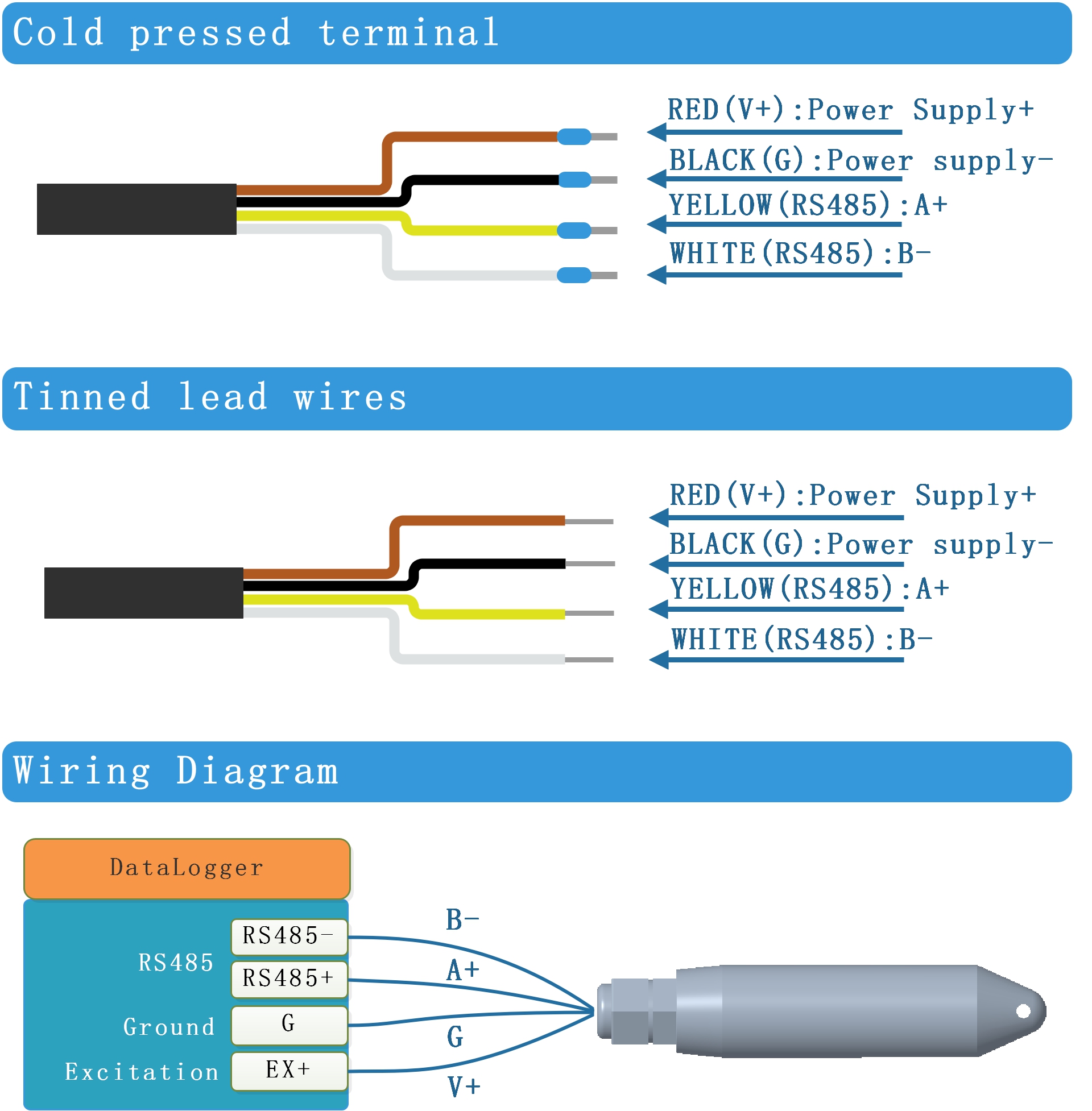

RS485 Interface
