Giant521-Weighing Module, RS485/RS232, Modbus
View:7401 Category:Products Category:Weighing Category:Weighing Module
Giant521 weighing transmitteris integrated with 1 independent weighing channel, serial communication port RS485 or RS232 (Modbus-RTU protocol),to achieve high speed data acquisition. It employs high speed precision AD convertor to achieve high resolution and wide dynamic range with low zero drift and temperature coefficient. It can be integrated with DCS,HMI,PLC and other control systems easily through its RS485 or RS232 interface using Modbus-RTU protocol. It can be used for hopper scale, platform balance, tensile testing machine, compression testing machine etc., and all kinds of testing system with strain gauge sensor.
Resources | |
User Manual | UM-Giant521 Weighing Transmitter-V2.0 |
Software | GiantOneSet-EN |
Giant521 weighing transmitteris integrated with 1 independent weighing channel, serial communication port RS485 or RS232 (Modbus-RTU protocol),to achieve high speed data acquisition. It employs high speed precision AD convertor to achieve high resolution and wide dynamic range with low zero drift and temperature coefficient. It can be integrated with DCS,HMI,PLC and other control systems easily through its RS485 or RS232 interface using Modbus-RTU protocol. It can be used for hopper scale, platform balance, tensile testing machine, compression testing machine etc., and all kinds of testing system with strain gauge sensor.
■ Single weighing channel with high accuracy conversion
■ RS485 or RS232 interface with Modbus-RTU protocol
■ Digital Filter and Anti-Vibration Filter
■ Power down preservation for parameters
■ Zero tracking and auto zero on start up
■ Watchdog to guarantee the system stability
■ Protected by Aluminum Die Casting Enclosure
Specifications | |||
Power Supply | 9-30VDC DC, 1W @ 24VDC | ||
Weighing | Channel:Single weighing channel
Sensor Type:4/6 wire strain gauge Excitation:+5V DC,60mA Max. for each channel Sampling rate: 100Hz/50Hz/25Hz/12.5Hz/6.25Hz Input range: ±30mV Resolution: 1/100000 Sensitivity:0.25uV/d Nonlinearity:±0.001%FS Temperature Drift:<±5ppm/℃ |
||
Display panel | None | ||
RS-485 or RS232 | TVS and Over Current protection
Modbus-RTU protocol |
||

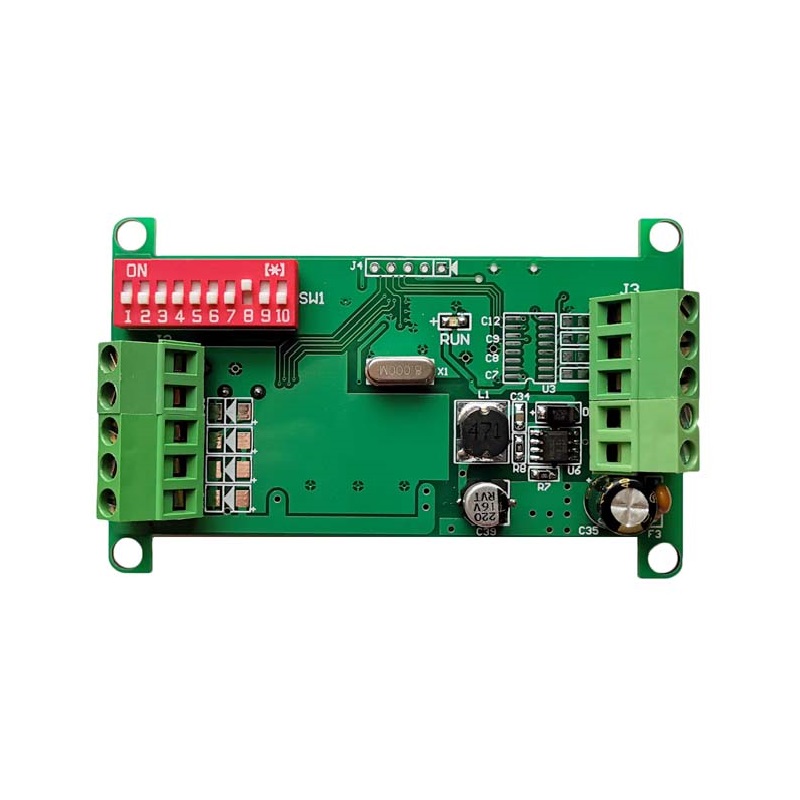

Dimension | PCBA: 87*55*25 mm

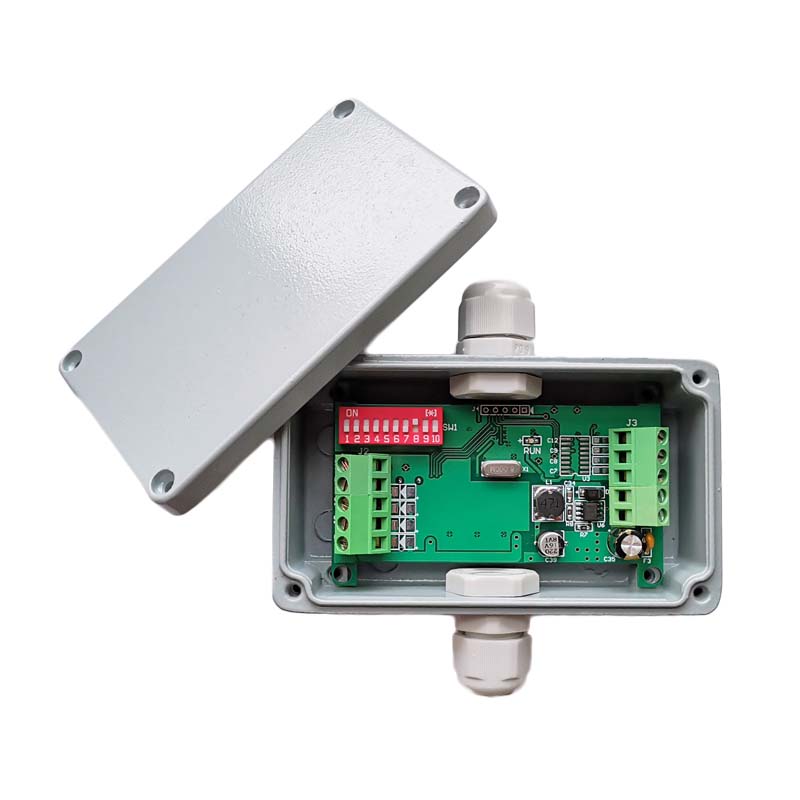

Aluminum Die Casting Enclosure: |
||
Storage | -40~85℃,10%~95% | ||
Operation | -10~45℃,10%~95% | ||
Installation and IP ratings | PCBA: Screw fixing, IP00
Aluminum Die Casting Enclosure: Screw fixing, IP54 |
Ordering Information | ||
Parameters | Code | Comment |
Code 1:Product Series | Giant521 | Dual channel weighing transmitter |
Code 2:Comm Interface | A
B |
RS485
RS232 |
Code 3:Protocol | A
B |
Modbus-RTU
Customize |
Code 4:Shield module | A
B |
NONE (PCBA)
Aluminum Die Casting Enclosure |
Ordering Code Example:
Giant520 Dual channel weighing transmitter,Comm Interface RS485, Protocol Modbus-RTU, Shield module NONE(PCBA),Ordering Code is Giant521 – A AA |
