MEC10-E/F Low Cost Soil Moisture, EC, Temperature Sensor, SDI12 Interface
View:1124 Category:SDI-12 Products Category:SDI-12 Sensors Category:Soil Moisture Category:Soil Moisture & Temperature Category:Soil Moisture & Temperature & EC Category:Soil Science

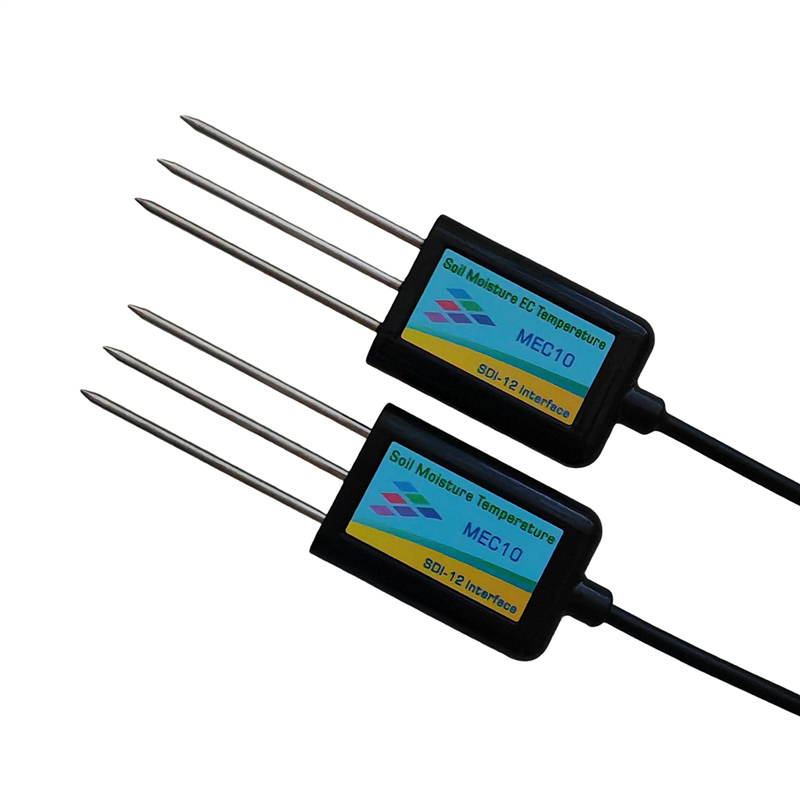

The MEC10 Substrate and Soil Moisture, Temperature, and Electrical Conductivity (EC) sensor is an accurate tool for monitoring volumetric water content (VWC), temperature in soil and soilless substrates, and electrical conductivity. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil or substrate with long time stability. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
Resources | |
User Manual | MEC10E, MEC10F Soil Moisture, EC, Temperature Sensor User Manual (SDI-12 Interface) |
Software(SDI-12 Interface) | SensorOneSetSDI12-EN |
Sensor Comparison | |
Product Code | Comments |
MEC10-E | Soil Moisture & Temperature & EC (Protocol compatible with METER TEROS12) |
MEC10-F | Soil Moisture & Temperature (Protocol compatible with METER TEROS11) |
MEC10-J | Soil Moisture & Temperature & EC (Protocol compatible with Decagon 5TE) |
MEC10-K | Soil Moisture & Temperature (Protocol compatible with Decagon 5TM) |
The MEC10 Substrate and Soil Moisture, Temperature, and Electrical Conductivity (EC) sensor is an accurate tool for monitoring volumetric water content (VWC), temperature in soil and soilless substrates, and electrical conductivity. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil or substrate with long time stability. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
Features
■ Integrated with Moisture, EC and Temperature measurement
■ Digital sensor communicates over SDI-12 serial interface
■ Low-input voltage requirements for power supply
■ Low-power design supports battery-operated data loggers
■ Low salinity sensitivity
■ Robust epoxy encapsulation resists corrosive environments
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
Applications
■ Smart Agriculture, Hydroponic and Horticulture
■ Greenhouse monitoring
■ Soil/Substrate water balance
■ Irrigation management
■ Solute/fertilizer movement
■ Reference evapotranspiration calculations
Specification | |||
Output Interface | SDI-12, V1.3 | ||
Power Supply | 3.9-28V/DC | ||
Power Consumption | SDI-12: Quiescent Current : <30uA
Measuring Current : <20mA during 150ms measurement |
||
Moisture Measurement | Apparent dielectric permittivity:
Range:1-81 (air – water), Resolution: 1-40.00: 0.1,40.00-81.88: 0.5 Accuracy:1.00-40.00:+/-1.5, ?40.00-81.00:+/-10% of Readings
Volumetric Water Content (VWC): Range:0-100%, Resolution: 0.1% Accuracy: +/-3% The VWC range is dependent on the media the sensor is calibrated to. A custom calibration will accommodate the necessary ranges for most substrates. |
||
EC Measurement | Range: 0-23000us/cm;
Resolution: 10us/cm; Accuracy: 0-7000us/cm, 5%; 7000-23000us/cm, +/-15% of Readings Temperature compensation: 0-50°C |
||
Temperature Measurement | Range: -40-80°C, Resolution:0.1°C, Accuracy:+/-0.5°C | ||
IP Ratings | IP68
|
||
Operating Temperature | -40-80°C | ||
Sensor Sealed | Epoxy resin | ||
Installation | Surface or buried installation | ||
Cable Length | 2 meters or Customize | ||

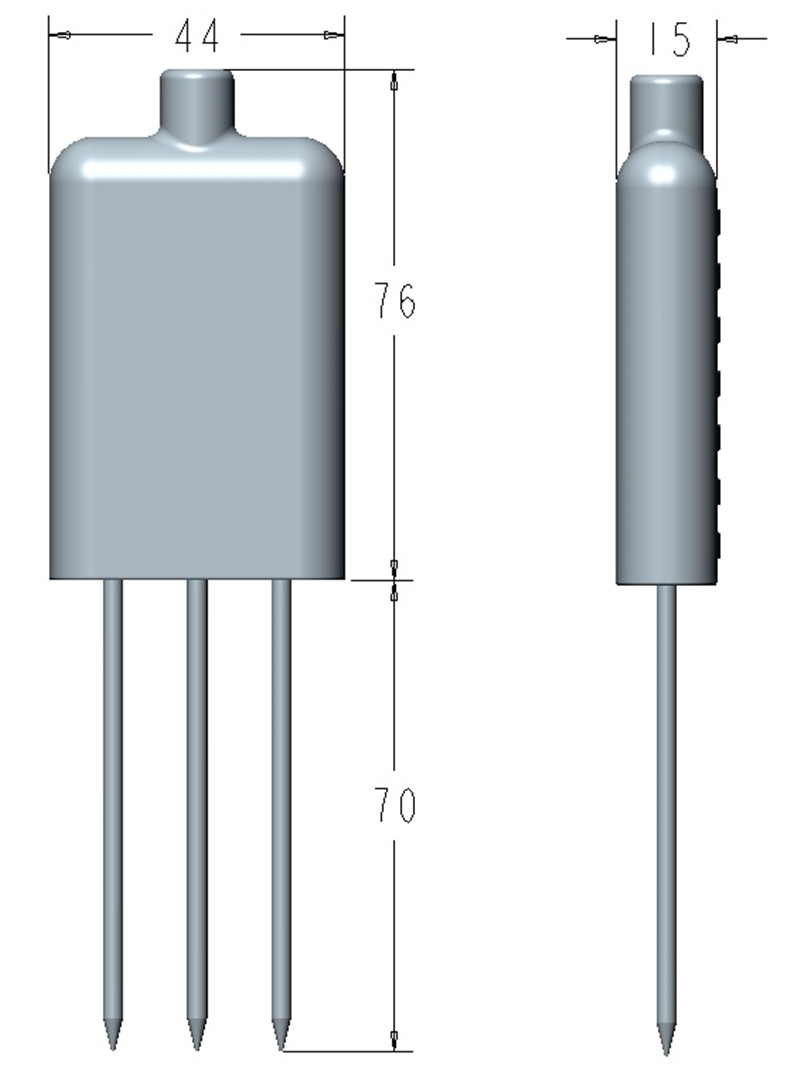

Dimension | 46*15*146mm | ||
Electrode Length | 70mm |
Ordering Information | |||
Parameters | Code | Comments | |
Code 1:
Product Series |
MEC10 | MEC10 Soil Moisture, Temperature , (EC) Sensor | |
Code 2:
Measuring Parameters |
E
F
J
K
|
Soil Moisture & Temperature & EC (Protocol compatible with METER TEROS12)
Soil Moisture & Temperature (Protocol compatible with METER TEROS11) Soil Moisture & Temperature & EC (Protocol compatible with Decagon 5TE) Soil Moisture & Temperature (Protocol compatible with Decagon 5TM) Note: Please refer to separate user manual for Code J & K |
|
Code 3:
Soil Moisture Range |
B | 0-100% | |
Code 4:
EC Range |
C
X |
0-23000us/cm
No EC measurement |
|
Code 5:
Power Supply |
F | 3.9-28V DC
|
|
Code 6:
Output Interface |
F | SDI-12 | |
Code 7:

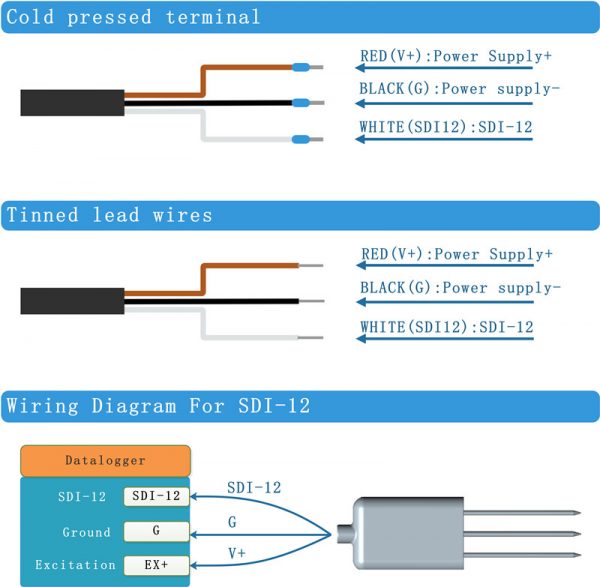

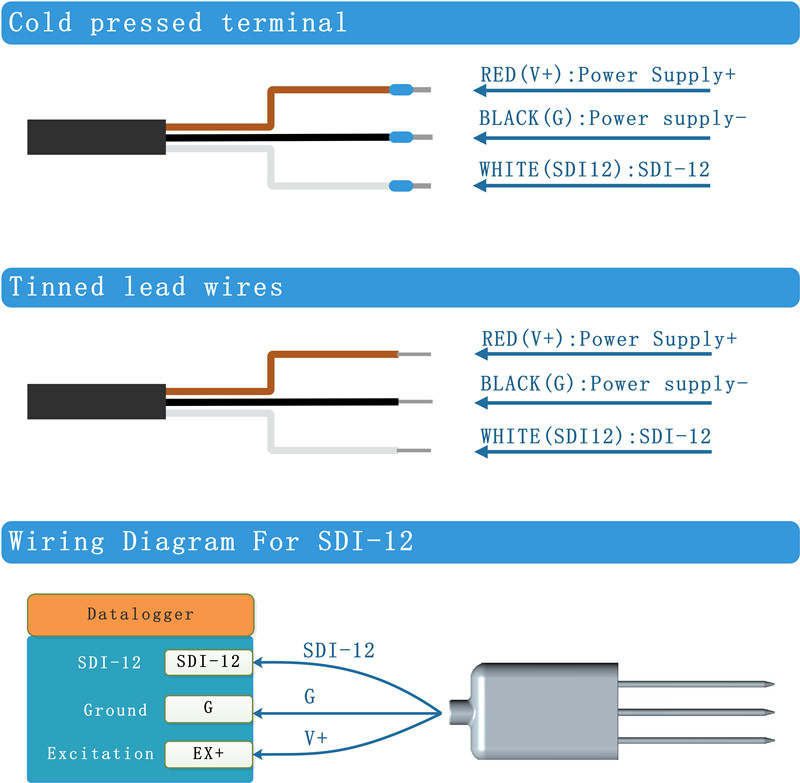

Connector |
B
C |
Cold pressed terminal
Stripped & tinned lead wires |
|
Code 8:
Cable Length |
002
XXX |
2 meters
Customize, XXX is required cable length(Unit: meter) |
|
Ordering Code Example: MEC10-EBCFFB002
Product Series: MEC10 Soil Moisture, Temperature , (EC) Sensor; Measuring Parameters: Soil Moisture & Temperature & EC (Protocol compatible with METER TEROS12); Soil Moisture Range: 0-100%; EC Range: 0-23000us/cm Power Supply: 3.9-28V DC Output Interface: SDI-12; Connector: Cold pressed terminal; Cable Length: 2 Meters |
