MS20-Soil Moisture and Temperature Sensor, RS485, Modbus

MS20-Soil Moisture and Temperature Sensor, RS485, Modbus

View:2850 Category:Products Category:Soil Moisture Category:Soil Moisture & Temperature Category:Soil Science

请联系我们咨询

MS20 measures soil moisture content and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.

MS20 measures soil moisture content and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.

■ Integrated with Soil Moisture and Temperature measurement

■ Output Interface with RS485, Voltage, Current

■ Low salinity sensitivity

■ Minimal soil disturbance

■ Water proof to IP68 ratings and can be directly buried into soil

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection



Specifications
Output Interface Analog Voltage 0-2V

(Output resistance ~0ohm)

Analog Current 4-20mA

(Load Resistor<500ohm)

RS485

Modbus-RTU

Power Supply 3.6-30V/DC 12-30V/DC 3.6-30V/DC
Power Consumption 6mA@24V DC 50mA@24V DC

(with 2*20mA output signal)

6mA@24V DC
Soil Moisture Measurement Range:0-50%,0-100%

Resolution:0-50%:0.03%,50-100%:1%

Accuracy:0-50%:2%,50-100%:3%

Temperature Measurement Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃
Measurement Technique Moisture by FDR
IP Ratings IP68
Operating Temperature -40~85℃
Sensor Rod Stainless steel
Sensor Sealed Epoxy resin
Installation Surface or buried installation
Cable Length 2 meters or Customize

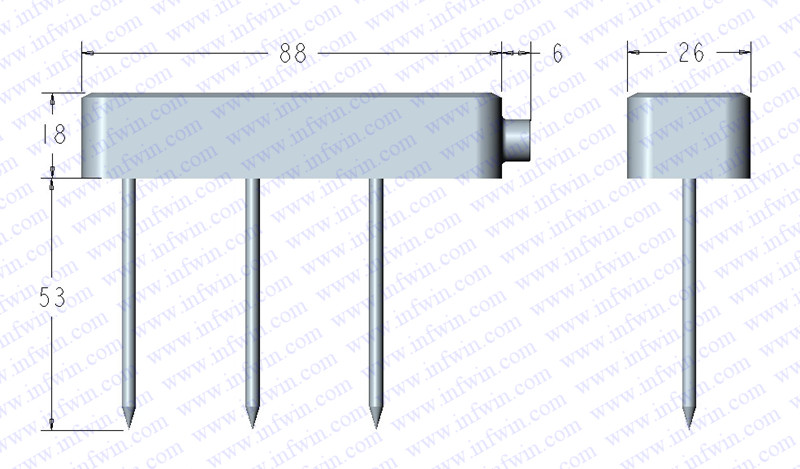

Dimension 88*71*26mm



Parameters Code Comments
Code 1:

Product Series

MS20 MS20 Soil Moisture, Temperature Sensor
Code 2:

Measuring Parameters

A

B

Soil Moisture & Temperature

Soil Moisture

Code 3:

Soil Moisture Range

A

B

0-100%

0-50%

Code 4:

Output Interface

A

B

C

D

E

F

G

Analog Voltage 0-2V

Analog Current 4-20mA

RS485,Modbus-RTU

RS485,Modbus-RTU & Analog Voltage 0-2V

RS485,Modbus-RTU & Analog Current 4-20mA

SDI-12

Customize

Code 5:

Power Supply

A

B

C

D

E

3.6-30V DC (not applicable for 4-20mA output)

12-30V DC

2.7-16V DC (not applicable for 4-20mA output)

Customize

2.0-5.5V DC (not applicable for 4-20mA output)

Code 6:

Cable Length

002

XXX

2 meters

Customize, XXX is required cable length(Unit: meter)

Ordering Code Example:

MS20 Sensor with Soil Moisture & Temperature parameters, Soil Moisture Range 100%, Output Interface RS485 Modbus RTU, Power Supply 3.6-30V DC, Cable Length 5 meters. Ordering Code is : MS20 – A A C A 005
