MS10-Soil Moisture and Temperature Sensor, RS485, Modbus
View:8797 Category:Products Category:Soil Moisture Category:Soil Moisture & Temperature Category:Soil Science
MS10 measures soil moisture content and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
Resources | |
User Manual | UM-MS10 Soil Moisture and Temperature Sensor |
Software | SensorOneSet-EN |
MS10 measures soil moisture content and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
■ Integrated with Soil Moisture and Temperature measurement
■ Output Interface with RS485, Voltage, Current
■ Low salinity sensitivity
■ Minimal soil disturbance
■ Water proof to IP68 ratings and can be directly buried into soil
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection

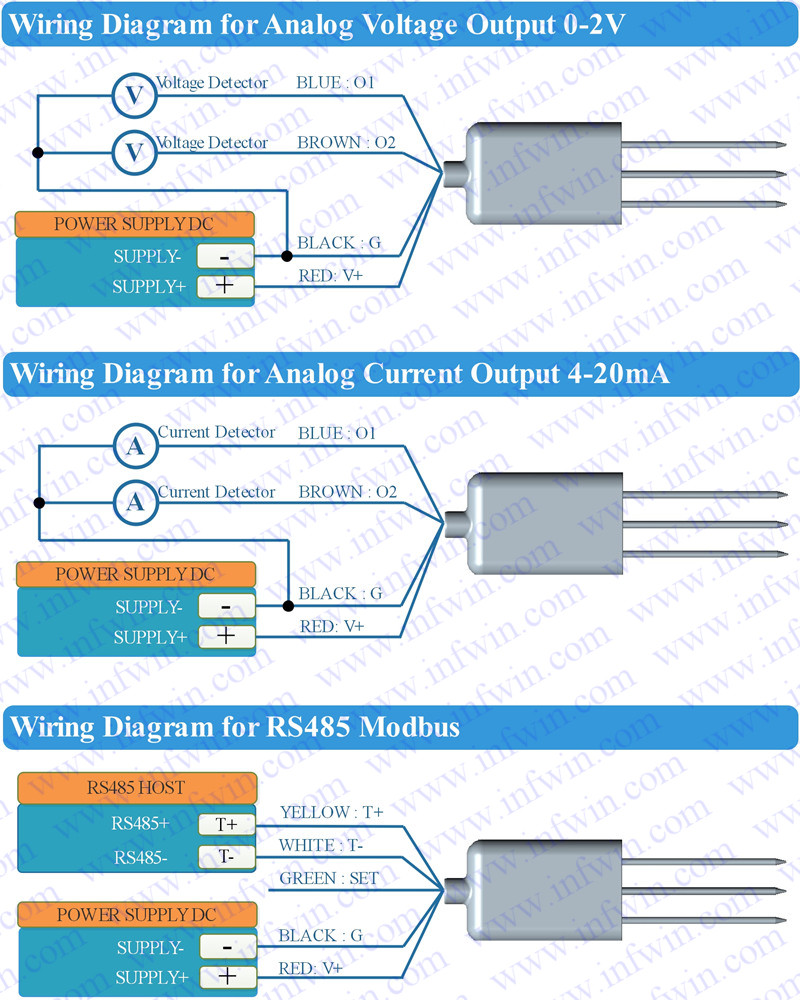

Specifications | |||
Output Interface | Analog Voltage 0-2V
(Output resistance ~0ohm) |
Analog Current 4-20mA
(Load Resistor<500ohm) |
RS485
Modbus-RTU |
Power Supply | 3.6-30V/DC | 12-30V/DC | 3.6-30V/DC |
Power Consumption | 6mA@24V DC | 50mA@24V DC
(with 2*20mA output signal) |
6mA@24V DC |
Soil Moisture Measurement | Range:0-50%,0-100%
Resolution:0-50%:0.03%,50-100%:1% Accuracy:0-50%:3%,50-100%:5% |
||
Temperature Measurement | Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃ | ||
Measurement Technique | Moisture by FDR | ||
IP Ratings | IP68 | ||
Operating Temperature | -40~85℃ | ||
Sensor Rod | Stainless steel | ||
Sensor Sealed | Epoxy resin | ||
Installation | Surface or buried installation | ||
Cable Length | 2 meters or Customize | ||

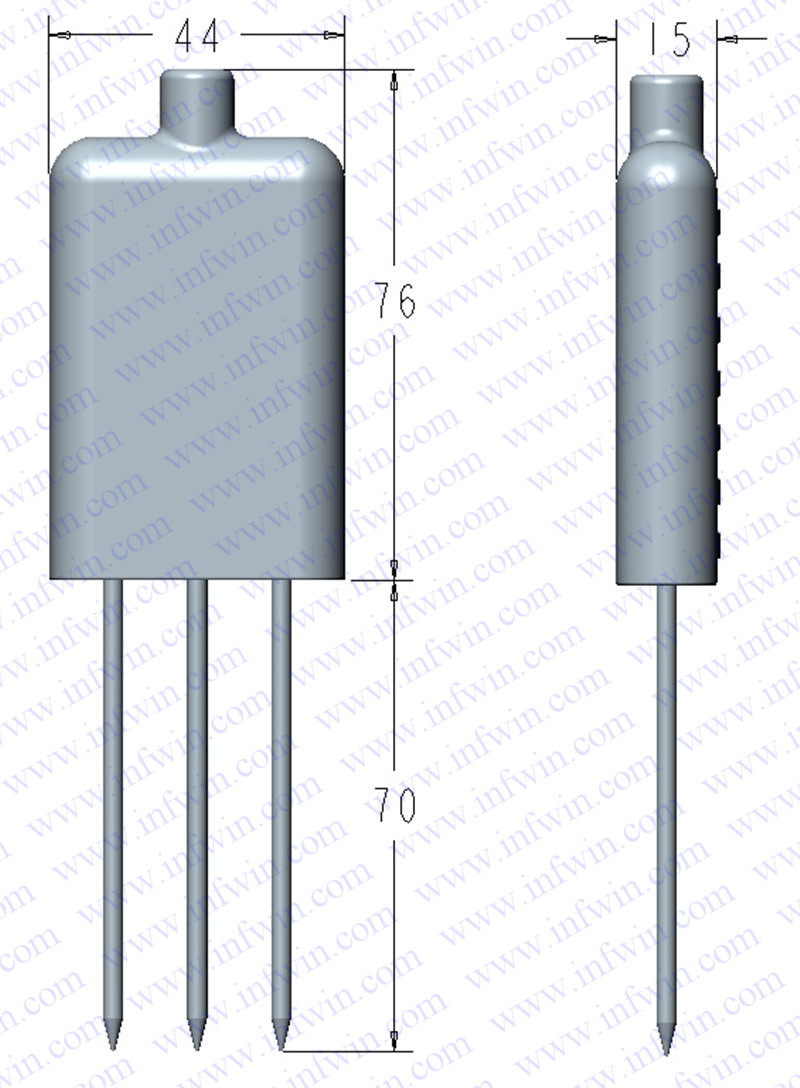

Dimension | 44*15*146mm |
Parameters | Code | Comments |
Code 1:
Product Series |
MS10 | MS10 Soil Moisture, Temperature Sensor |
Code 2:
Measuring Parameters |
A
B C |
Soil Moisture & Temperature
Soil Moisture Customize |
Code 3:
Soil Moisture Range |
A
B |
0-100%
0-50% |
Code 4:
Output Interface |
A
B C D E F G |
Analog Voltage 0-2V
Analog Current 4-20mA RS485,Modbus-RTU RS485,Modbus-RTU & Analog Voltage 0-2V RS485,Modbus-RTU & Analog Current 4-20mA SDI-12 Customize |
Code 5:
Power Supply |
A
B C D E |
3.6-30V DC (not applicable for 4-20mA output)
12-30V DC 2.7-16V DC (not applicable for 4-20mA output) Customize 2.0-5.5V DC (not applicable for 4-20mA output) |
Code 6:
Cable Length |
002
XXX |
2 meters
Customize, XXX is required cable length(Unit: meter) |
Ordering Code Example:
MS10 Sensor with Soil Moisture & Temperature parameters, Soil Moisture Range 100%, Output Interface RS485 Modbus RTU, Power Supply 3.6-30V DC, Cable Length 5 meters. Ordering Code is : MS10 – A A C A 005 |
