MT05V-Soil Moisture Sensor, Voltage Output
View:5951 Category:Products Category:Soil Moisture Category:Soil Moisture & Temperature Category:Soil Moisture & Temperature & EC Category:Soil Salinity Category:Soil Science
MT05V measures soil moisture content. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. Sensor with relatively small size and can be used for pot culture and Seedling tray. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
Resources | |
User Manual | UM-MT05V Soil Moisture Sensor |
Software | N/A |
MT05V measures soil moisture content. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. Sensor with relatively small size and can be used for pot culture and Seedling tray. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
■ Soil Moisture measurement with high sensitivity and accuracy
■ Relatively small size 20*11*95mm for pot culture and Seedling tray
■ Output Interface with Voltage
■ Calibration formula for different growing media
■ Low salinity sensitivity
■ Minimal soil disturbance
■ Water proof to IP68 ratings and can be directly buried into soil
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
Specification | |
Measuring parameters | Soil Moisture (Volumetric Water Content) |
Power Supply | 2.5-16V DC @ 15mA |
Output Interface | Analog voltage: max 2000mV
Output impedance: 2Kohm |
Soil Moisture Range | Range:0-100%
Resolution: 0-55%: 0.1%; 55%-100%:1.5%. Accuracy: 0-50%:±3%; 50%-100%: ±5%. |
Measuring Method | FDR |
IP Ratings | IP68 |
Operating Temperature | -40~85℃ |
Sensor Sealed | Epoxy resin |
Installation | Surface or buried installation |
Cable Length | 5 meters, or Customize |

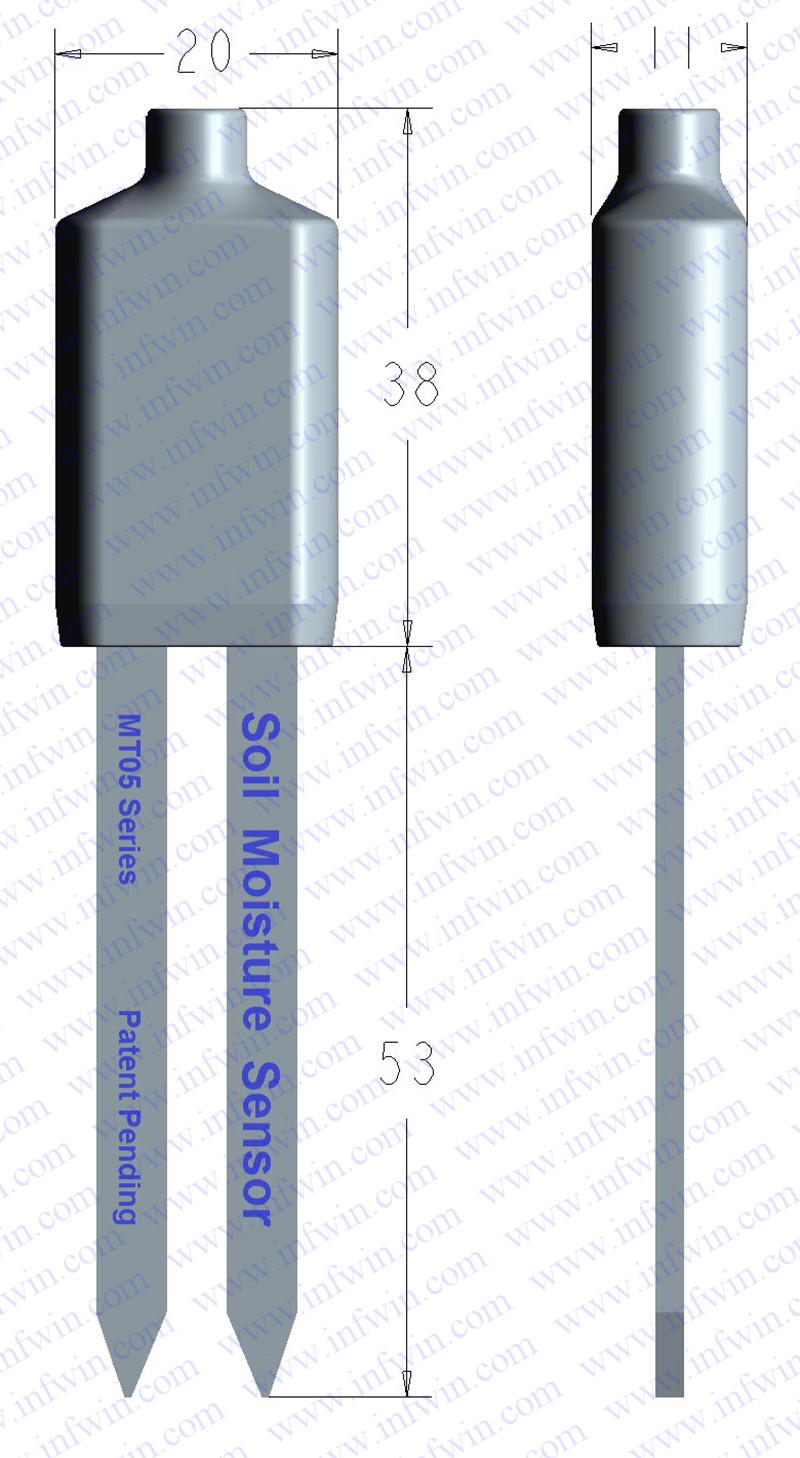

Dimension | 20*11*95mm |
Ordering Information | |||
Parameters | Code | Comments | |
Code 1:
Product Series |
MT05V | Soil Moisture measurement, 2.5-16VDC Power supply, Analog voltage output. | |

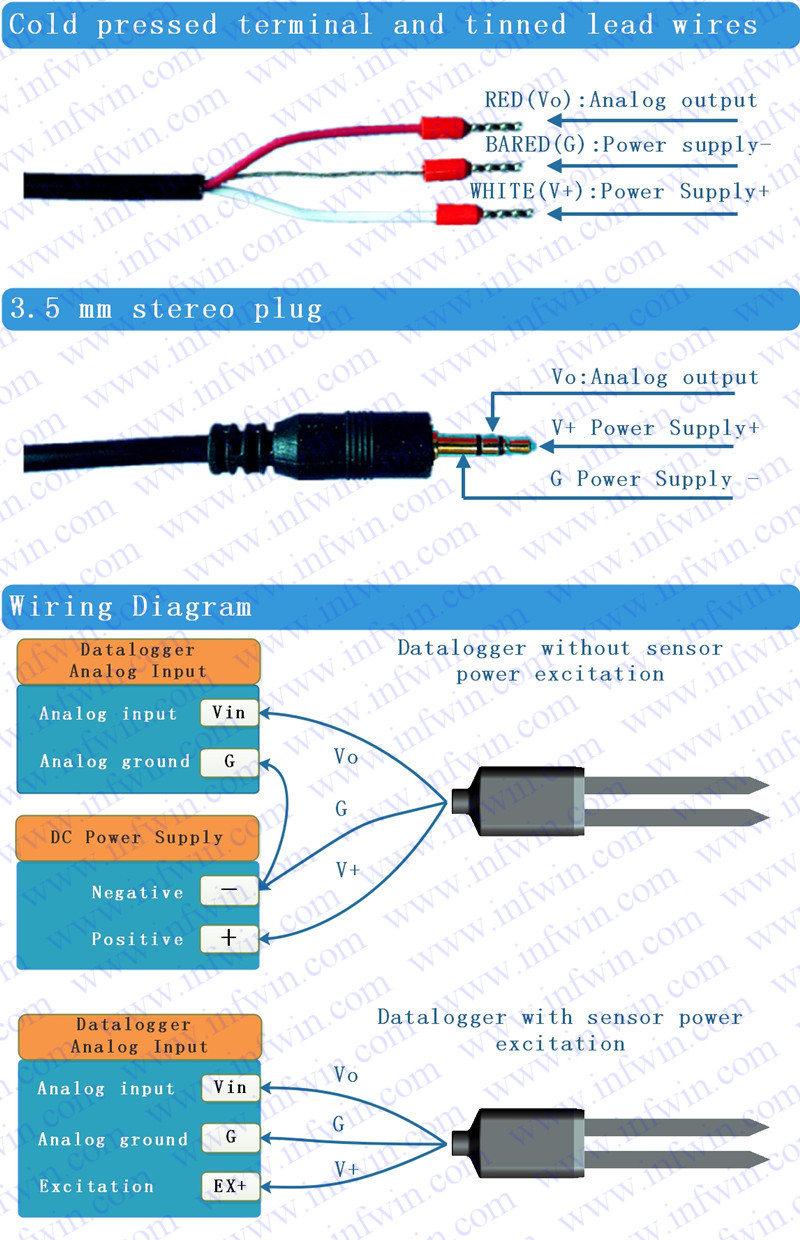

Code 2:
Connector |
A
B C |
3.5mm phone jack
Cold pressed terminal pre-tinning wire |
|
Code 6:
Cable Length |
005
XXX |
5 meters
Customize, XXX is required cable length(Unit: meter) |
|
Ordering Code Example:
MT05V Soil Moisture measurement, 2.5-16VDC Power supply, Analog voltage output, Cold pressed terminal,Cable Length 5 meters. Ordering Code is : MT05V-B 005 |
