Giant204-4 Channel Weighing Module, RS485&RS232, Modbus

Giant204-4 Channel Weighing Module, RS485&RS232, Modbus

View:5632 Category:Products Category:Weighing Category:Weighing Module

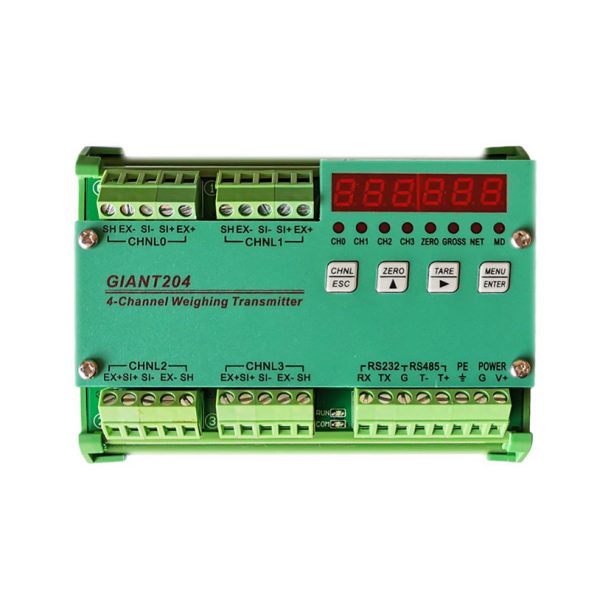

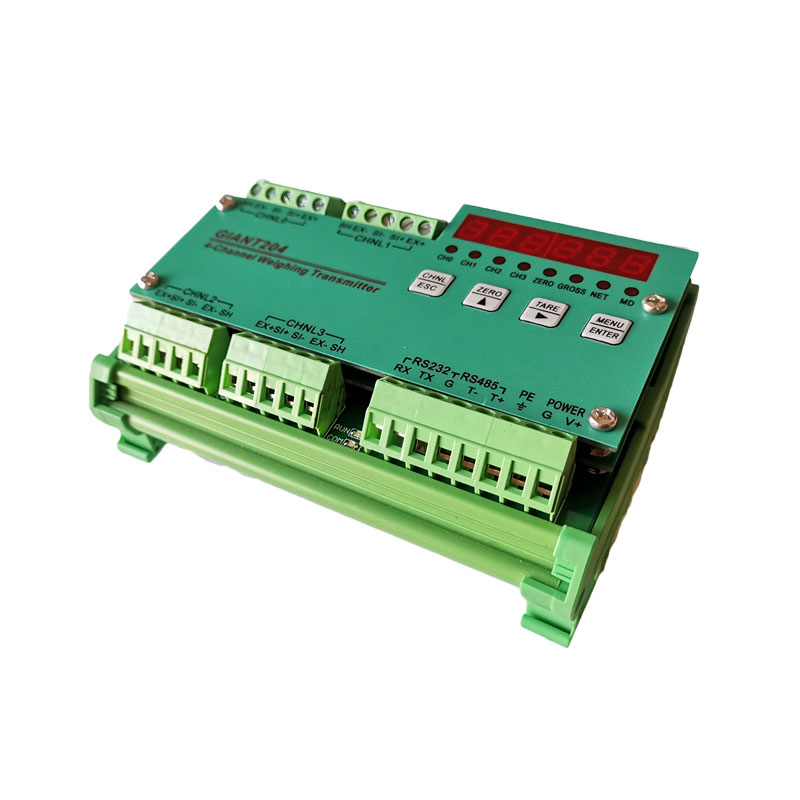

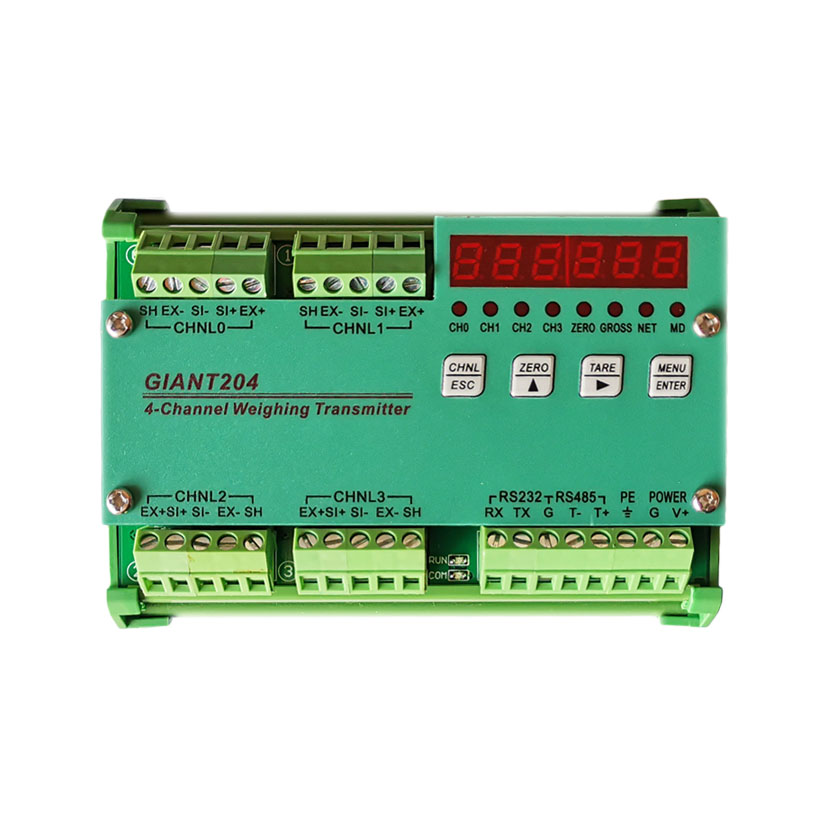

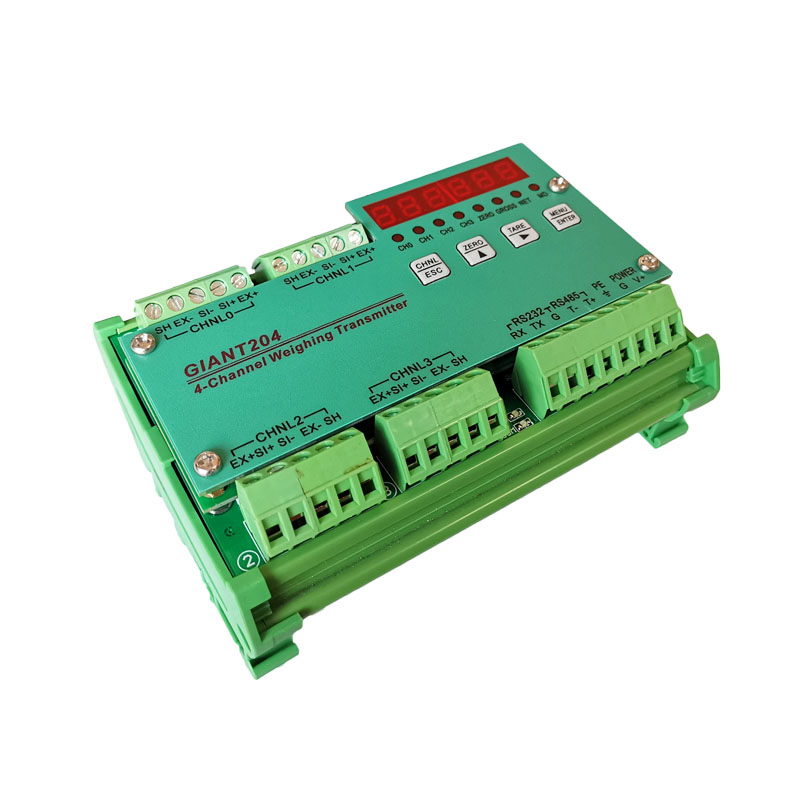

Giant204 Quad channel weighing transmitter,is integrated with 4 independent weighing channel, serial communication port RS485 & RS232 (Modbus-RTU protocol),to achieve high speed data acquisition. It employs high speed precision AD convertor to achieve high resolution and wide dynamic range with low zero drift and temperature coefficient. It can be installed by standard 35mm standard DIN rail and can be integrated with DCS,HMI,PLC and other control systems easily through its RS485 or RS232 interface with Modbus-RTU protocol. It can be used for hopper scale, platform balance, tensile testing machine, compression testing machine etc., and all kinds of testing system with strain gauge sensor.



Resources
User Manual UM-Giant204 Quad Channel Weighing Transmitter-V1.0
Software GiantOneSet-EN

Giant204 Quad channel weighing transmitter,is integrated with 4 independent weighing channel, serial communication port RS485 & RS232 (Modbus-RTU protocol),to achieve high speed data acquisition. It employs high speed precision AD convertor to achieve high resolution and wide dynamic range with low zero drift and temperature coefficient. It can be installed by standard 35mm standard DIN rail and can be integrated with DCS,HMI,PLC and other control systems easily through its RS485 or RS232 interface with Modbus-RTU protocol. It can be used for hopper scale, platform balance, tensile testing machine, compression testing machine etc., and all kinds of testing system with strain gauge sensor.



■ Four channel independent weighing channel with high accuracy conversion

■ RS485 and RS232 interface with Modbus-RTU protocol

■ Support Digital and Load Calibration

■ Digital Filter and Anti-Vibration Filter

■ Power down preservation for parameters

■ Zero tracking and auto zero on start up

■ Watchdog to guarantee the system stability

■ 35mm DIN rail installation



Specifications
Power Supply 18-36VDC DC, 5W @ 24VDC
Weighing Channel:4 independent weighing channel

Sensor Type:4/6 wire strain gauge

Excitation:+5V DC,60mA Max. for each channel

Sampling rate: 100Hz

Input range: ±30mV

Resolution: 1/100000

Sensitivity:0.25uV/d

Nonlinearity:±0.001%FS

Temperature Drift:<±5ppm/℃

Display panel Display:6 digit LED display

Weighing display:Fixed channel or 4 channel in turn(can be NET/GROSS weight)

Display range:500-100000

Division:1,2,5,10,20,50

Decimal Point:0,1,2,3,4

Overload Display:+o.L.or -o.L.

Negative display:”-” mark on the left

Status Indicator:8 led indicator

RS-485 TVS and Over Current protection

Modbus-RTU protocol

RS-232 TVS and Over Current protection

Modbus-RTU protocol

Storage -40~85℃,10%~95%
Operation -10~45℃,10%~95%
Installation and IP ratings 35mm DIN rail(125*90*50mm): IP40



Ordering Information
Parameters Code Comment
Code 1:Product Series Giant204 Four channel weighing transmitter
Code 2:Shield module A

B

35mm DIN rail installation

Waterproof shield module

Ordering Code Example:

Giant204 Four channel weighing transmitter, 35mm DIN rail installation, Ordering Code is Giant204 – A
