PHORP10 Isolated PH/ORP Transmitter with RS485 Modbus, Analog Voltage, Analog Current Interface
View:8853 Category:Measurements Category:ORP Category:PH Category:Products
PHORP10 transmitter measures the PH/ORP of solution or semi-solid substrate. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc.
Resources | |
User Manual | UM-PHORP10 Isolated PH & ORP transmitter |
Software | SensorOneSet-EN |
PHORP10 transmitter measures the PH/ORP of solution or semi-solid substrate. The output signal can be RS485, Analog Voltage or Analog Current. The sensor is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc.
■ Can be used for PH or ORP measurement

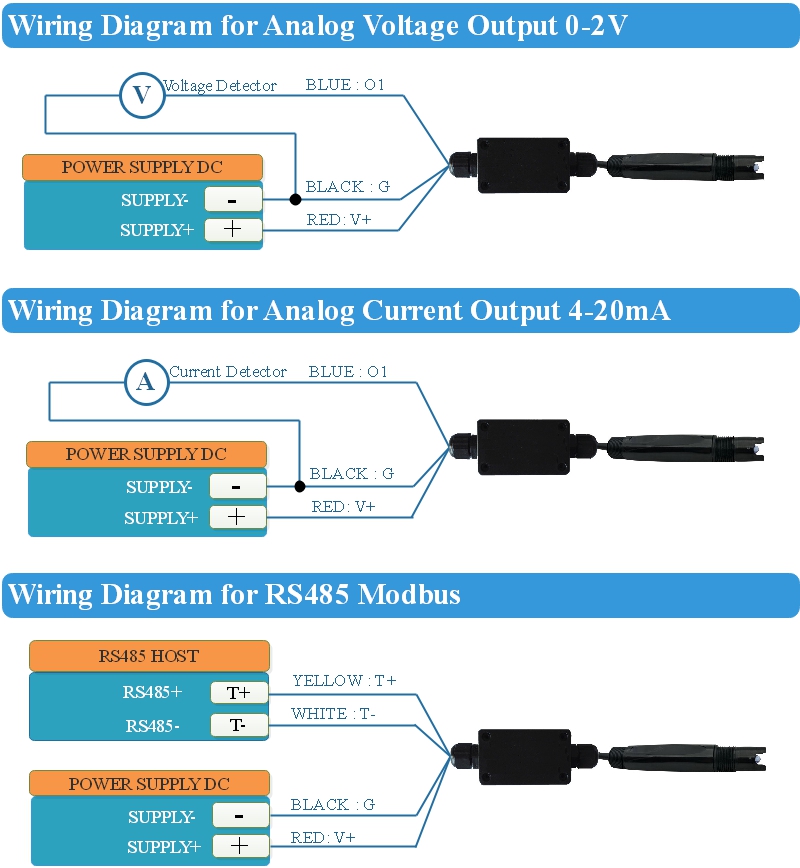

■ Output Interface with RS485, Voltage, Current
■ High impedance and isolated electrode input
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
Specifications | |||
Output Interface | Analog Voltage 0-2V
(Output resistance ~0ohm) |
Analog Current 4-20mA
(Load Resistor<500ohm@30VDC) |
RS485
Modbus-RTU |
Power Supply | 3.9-30V/DC | 12-30V/DC | 3.9-30V/DC |
Power Consumption | 35mA@24V DC | 55mA@24V DC
(with 20mA output signal) |
35mA@24V DC |
Start-up time | < 2 seconds | ||
PH Measurement | High impedance and isolated input; Range: 0-14PH, Resolution: 0.01PH, Accuracy: +/-0.1PH; Can be used for solution or semi-solid substrate | ||
ORP Measurement | High impedance and isolated input ; Range: +/-2000mV, Resolution: 0.1mV, Accuracy: +/-1mV; Can be used for solution or semi-solid substrate | ||
Temperature Measurement(Option) | Range: -40~80°C, Resolution: 0.1°C, Accuracy: +/-0.5°C | ||
IP Ratings | Electrode: IP68; Transmitter: IP65 | ||
Operating Temperature | -40~85°C | ||
Installation | Electrode: 3/4″NPT screw threads; Transmitter: Mounting hole | ||
Cable Length | Power and Signal Cable:2 meters or Customize; Electrode Cable: 5 meters | ||
Dimension | Electrode: Width*Diameter 160*30mm; 3/4″NPT screw threads
Transmitter: 140mm*65mm*50mm |
Ordering Information | |||
Parameters | Code | Comments | |
Code 1:
Product Series |
PHORP10
|
PHORP10 transmitter | |
Code 2:
Electrode Selection |
A
B C |
PH Electrode(With Onboard Temperature Compensation)
PH Electrode(With External Temperature Compensation) ORP Electrode |
|
Code 3:
Power Supply |
A
B |
3.9-30V DC(Applicable for RS485&0-2V Interface)
12-30V DC(Applicable for 4-20mA Interface) |
|
Code 4:
Output Interface |
A
B C D E F G |
Analog Voltage 0-2V
Analog Current 4-20mA RS485,Modbus-RTU RS485,Modbus-RTU & Analog Voltage 0-2V RS485,Modbus-RTU & Analog Current 4-20mA SDI-12 Customize |
|
Code 5:
Cable Length |
002
XXX |
Electrode Cable:5 meters , Power and Signal Cable:2 meters
Electrode Cable:5 meters , Power and Signal Cable:xxx meters |
|
Ordering Code Example:
PHORP10 transmitter , PH Electrode(Without Temperature Compensation), Power Supply 3.9-30V DC, Output Interface RS485, Modbus-RTU, Electrode Cable:5 meters , Power and Signal Cable:2 meters, Ordering Code is : PHORP10-A A C 002 |
