SlabSense Substrate Moisture, EC, Temperature Sensor For Hydroponic (Rockwool, Cocopeat), SDI12, RS485 Interface
View:9736 Category:Products Category:SDI-12 Products Category:SDI-12 Sensors Category:Soil Moisture Category:Soil Moisture & Temperature Category:Soil Moisture & Temperature & EC Category:Soil Science
The SlabSense Substrate and Soil Moisture, Temperature, and Electrical Conductivity (EC) sensor is an accurate tool for monitoring volumetric water content (VWC), temperature in soil and soilless substrates, and electrical conductivity. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil or substrate with long time stability.
Furthermore, the sensor can equip with the air humidity and temperature sensor, which can measure ambient temperature, humidity, vapor pressure and vapor pressure deficit. Vapor pressure deficit is independent of temperature and is a more accurate measure to predict plant transpiration and water loss than relative humidity, this is very useful in greenhouse control to maintain a greater vapor pressure deficit (greater than 0.5 kPa) to allow plants to effectively transpire and prevent foliar diseases.
The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
Resources | |
User Manual | SlabSense Substrate Moisture, EC, Temperature Sensor, SDI12, RS485 Interface-V1.0 |
Software(RS485 Interface) | SensorOneSet-EN |
Software(SDI-12 Interface) | SensorOneSetSDI12-EN |
The SlabSense Substrate and Soil Moisture, Temperature, and Electrical Conductivity (EC) sensor is an accurate tool for monitoring volumetric water content (VWC), temperature in soil and soilless substrates, and electrical conductivity. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil or substrate with long time stability.
Furthermore, the sensor can equip with the air humidity and temperature sensor, which can measure ambient temperature, humidity, vapor pressure and vapor pressure deficit. Vapor pressure deficit is independent of temperature and is a more accurate measure to predict plant transpiration and water loss than relative humidity, this is very useful in greenhouse control to maintain a greater vapor pressure deficit (greater than 0.5 kPa) to allow plants to effectively transpire and prevent foliar diseases.
The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.
Features
■ Integrated with Moisture, EC and Temperature measurement
■ Vapor Pressure Deficit, Air Humidity, Temperature measurement for greenhouse control
■ Digital sensor communicates over SDI-12 or RS485 serial interface
■ Supports SDI-12 or Modbus-RTU communications protocols
■ Low-input voltage requirements for power supply
■ Low-power design supports battery-operated data loggers
■ Low salinity sensitivity
■ Robust epoxy encapsulation resists corrosive environments
■ High accuracy with excellent stability
■ Reverse power protection and Built-in TVS/ESD protection
Applications
■ Smart Agriculture, Hydroponic and Horticulture
■ Greenhouse monitoring
■ Soil/Substrate water balance
■ Irrigation management
■ Solute/fertilizer movement
■ Reference evapotranspiration calculations
Specification | |||
Output Interface | Optional: SDI-12, V1.3
Optional: RS485, Modbus-RTU |
||
Power Supply | 3.9-28V/DC | ||
Power Consumption | SDI-12: Quiescent Current : <30uA
RS485: Quiescent Current : <4mA Measuring Current : <20mA during 150ms measurement |
||
Substrate Moisture Measurement | Apparent dielectric permittivity:
Range:1-81 (air – water), Resolution: 1-40.00: 0.1,40.00-81.88: 0.5 Accuracy:1.00-40.00:+/-1, ?40.00-81.00:+/-10% of Readings
Volumetric Water Content (VWC): Range:0-100%, Resolution: 0.1% Accuracy: +/-3% The VWC range is dependent on the media the sensor is calibrated to. A custom calibration will accommodate the necessary ranges for most substrates. |
||
Substrate EC Measurement | Range: 0-20ds/m;
Resolution: 0.01ds/m; Accuracy: 0-7ds/m, 5%; 7-20ds/m, +/-10% of Readings Temperature compensation: 0-50°C |
||
Substrate Temperature Measurement | Range: -40-80°C, Resolution:0.1°C, Accuracy:+/-0.5°C | ||
Air Humidity | Range:0-100%, Resolution:0.1%, Typical Accuracy:+/-1.8% RH | ||
Air Temperature | Range:-40-80°C, Resolution:0.1°C, Typical Accuracy: +/-0.2°C | ||
IP Ratings | IP68 (No Air Humidity & Temperature & Vapor Pressure Deficit measurement)
IP50 (With Air Humidity & Temperature & Vapor Pressure Deficit measurement) |
||
Operating Temperature | -40-80°C | ||
Sensor Sealed | Epoxy resin | ||
Installation | Surface or buried installation | ||
Cable Length | 2 meters or Customize | ||
Dimension | 90*55*75mm |
Ordering Information | |||
Parameters | Code | Comments | |
Code 1:
Product Series |
SlabSense | SlabSense Substrate Moisture EC Temperature Sensor | |
Code 2:
Measuring Parameters |
A
B |
Substrate Moisture & EC & Temperature
Substrate Moisture & EC & Temperature with Air Humidity & Temperature & Vapor Pressure Deficit measurement |
|
Code 3:
Power Supply |
A | 3.9-28V DC | |
Code 4:
Output Interface |
A
B |
RS485(Modbus-RTU)
SDI-12 |
|
Code 5:
Connector |
B
C |
Cold pressed terminal
Stripped & tinned lead wires |
|
Code 6:
Cable Length |
002
XXX |
2 meters
Customize, XXX is required cable length(Unit: meter) |
|
Ordering Code Example: SlabSense-AAAB002
Product Series: SlabSense Substrate Moisture EC Temperature Sensor; Measuring Parameters: Substrate Moisture & EC & Temperature; Power Supply: 3.9-30V DC Output Interface: RS485(Modbus-RTU); Connector: Cold pressed terminal; Cable Length: 2 Meters |

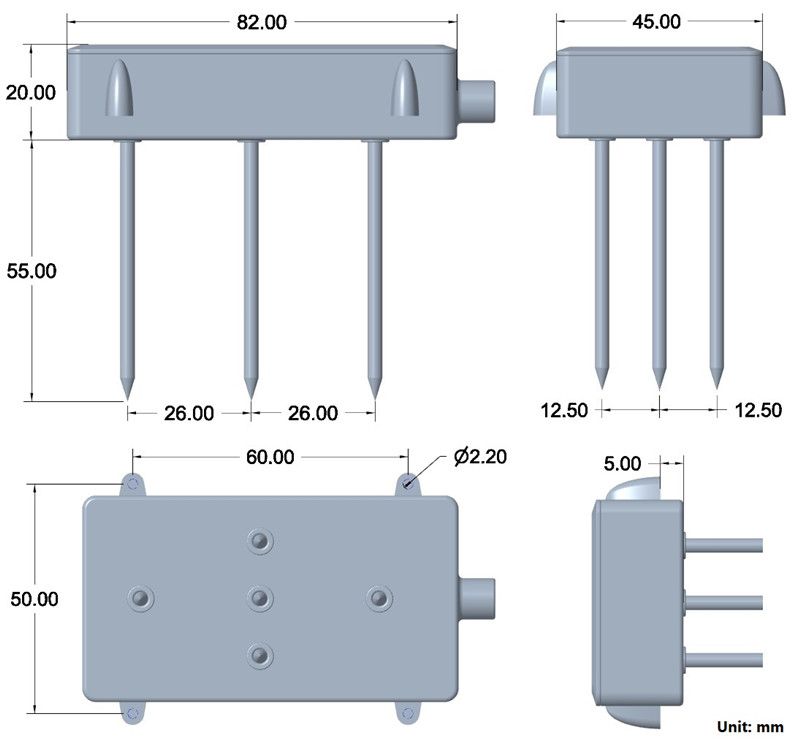

Dimension:

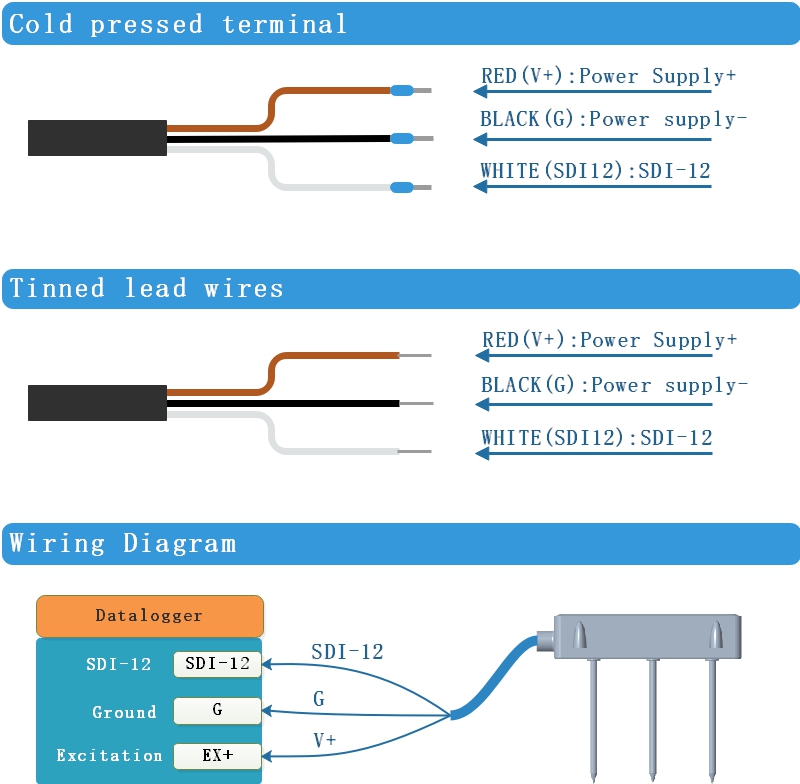

SDI-12 Interface:

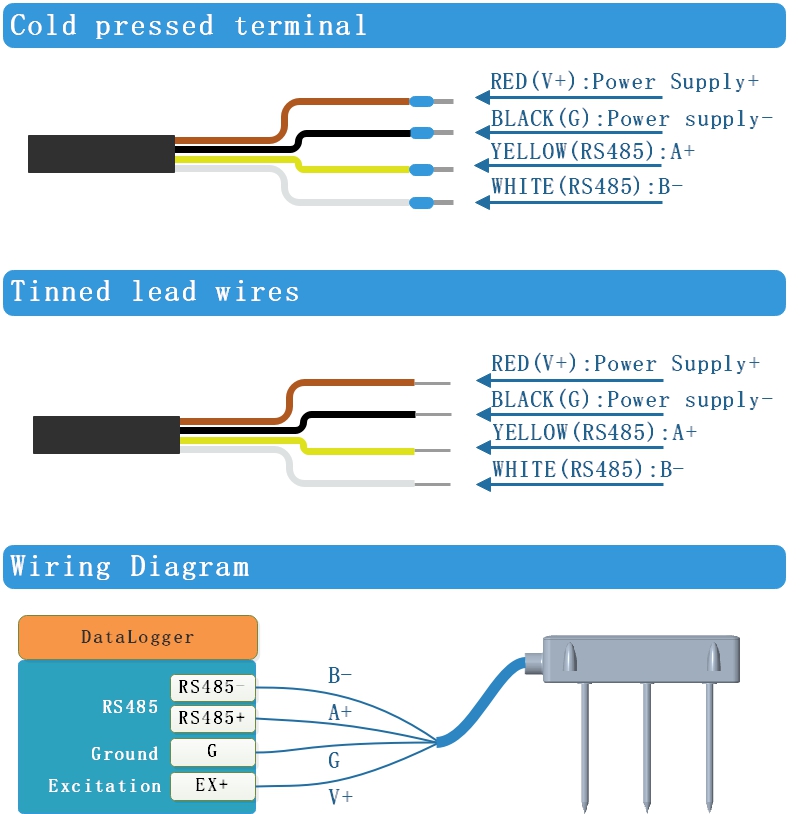

RS485 Interface:
