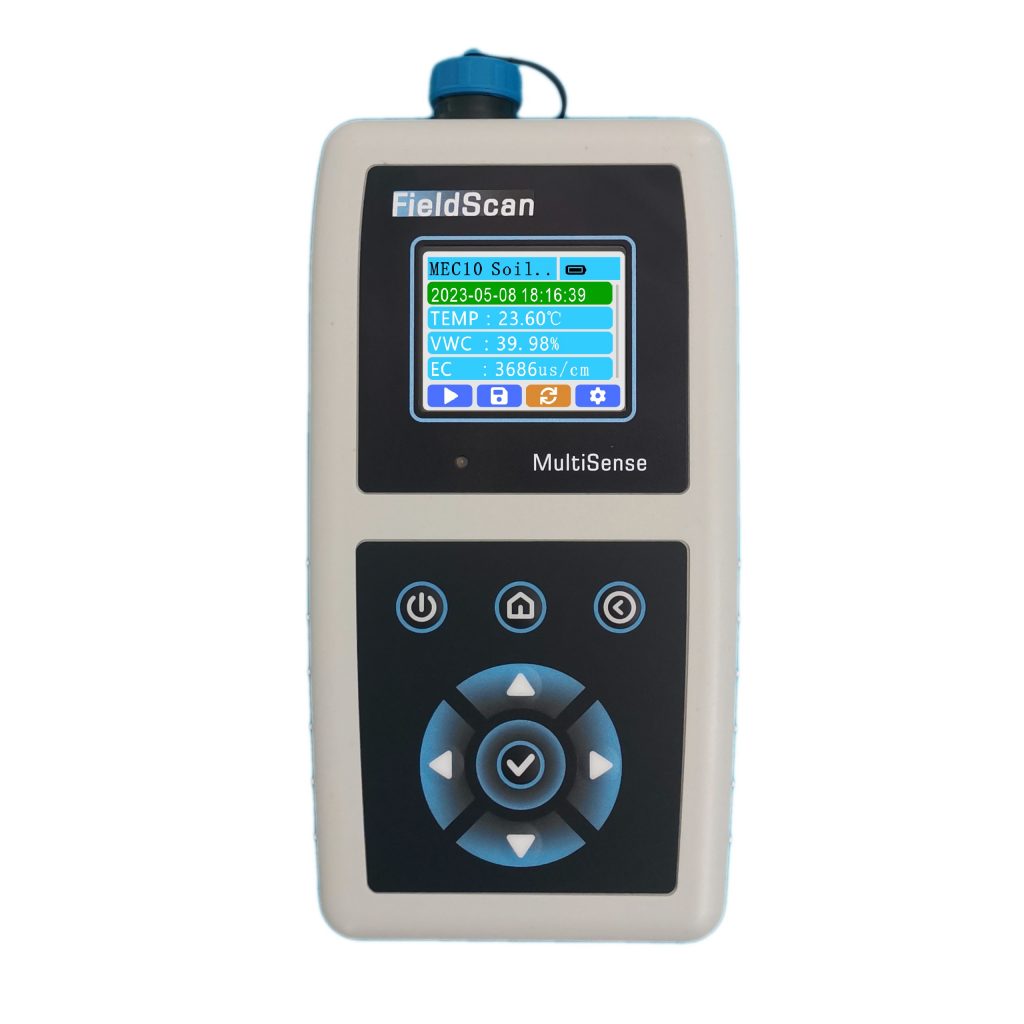

FieldScan handheld sensor reader (MultiSense Version)
View:2035 Category:Air Humidity & Temperature Category:Air Humidity & Temperature & Barometric Pressure Category:Ambient Light & Illuminance Category:Handheld Meter Category:Leaf Wetness Category:Measurements Category:Products Category:Pyranometer Category:Soil Moisture Category:Soil Moisture & Temperature Category:Soil Moisture & Temperature & EC Category:Soil Salinity Category:Soil Science Category:Temperature
The FieldScan Series - MultiSense is a handheld readout device for use with all soil moisture sensors and environmental monitoring sensors made or sold by INFWIN. It interfaces with sensor with digital signal to obtain instantaneous results. This manual covers all MultiSense functions and capabilities.
Resources | |
User Manual | FieldScan handheld sensor reader (MultiSense Version) user manual |
Supported Sensor List | FieldScan handheld sensor reader (MultiSense Version) sensor list |
Software | FieldScanUtility-EN |
The FieldScan Series – MultiSense is a handheld readout device for use with all soil moisture sensors and environmental monitoring sensors made or sold by INFWIN. It interfaces with sensor with digital signal to obtain instantaneous results. This manual covers all MultiSense functions and capabilities.
Feature
■ Use with soil moisture/EC/temperature or many other sensor
■ Data can be read out/saved manually or automatically
■ Utility software for data download/export through WiFi
■ Internal realtime clock
■ Battery-powered for field application
■ Auxiliary power input through USB Type-C
Applications
■ Industrial Monitoring
■ Environment Monitoring
■ Scientific Research
■ Agriculture
■ Horticulture
Specification | |
Sensor Input | 1 Channel Sensor Input |
Power Supply | Two options when ordering,Both support USB type C (5V DC) auxiliary power input
■ 3*AA Battery ■ 3.7V Chargeable lithium battery |
Data Readout and Save | Manually/Automatically |
Data Storage and Export | Two options when ordering,Data can be download through WiFi
■ 256 Items Storage ■ 100,000 Items Storage |
Realtime Clock | Supported |
Display | 160*128 Color LCD |
Operation | -10~50℃ |
IP Rating | IP20 NEMA1 |
Dimensions | 170*80*40mm |
Supported Sensors | Soil Moisture/Temperature sensor: MS10/MS20/MT10RB
Soil Moisture/EC/Temperature sensor: MEC10/MEC20/MT10RA Soil Moisture/EC/Temperature/NPK sensor: SIS10 Substrate Moisture/EC/Temperature sensor: SlabSense Rugged Temperature sensor: DigiTEMP Air Temperature/Humidity/Dew sensor: DigiTH Air Temperature/Humidity/Dew/Barometric sensor: DigiTHP Air Temperature/Humidity/Dew/Barometric/Vapor Pressure sensor: DigiTHP-Gen2 Ambient Light sensor: ALS20 Solar Radiation sensor: PYR20 Leaf Wetness sensor: LWS10 Refer to:《FieldScan handheld sensor reader (MultiSense) sensor list》 for more information |
Ordering Code | ||
Parameters | Code | Comments |
Code 1:
Product Series |
FieldScan(MS)- | FieldScan series handheld sensor reader (MultiSense Version) |
Code 2:
Battery |
A
B |
3*AA battery,support USB type C (5V DC) auxiliary power input
3.7V Chargeable lithium battery(3000mAh),support USB type C (5V DC) auxiliary power input |
Code 3:
Data Storage |
A
B |
256 Items Storage
100,000 Items Storage |
Code 4:
Other Customization |
A
X |
No customization
Customization |
Code 5:
Sensor Cable Length |
002
XXX |
2 meters
Customization |
Code 5:
Sensor Type |
-SensorType | Soil Moisture/Temperature sensor: MS10/MS20/MT10RB
Soil Moisture/EC/Temperature sensor: MEC10/MEC20/MT10RA Soil Moisture/EC/Temperature/NPK sensor: SIS10 Substrate Moisture/EC/Temperature sensor: SlabSense Rugged Temperature sensor: DigiTEMP Air Temperature/Humidity/Dew sensor: DigiTH Air Temperature/Humidity/Dew/Barometric sensor: DigiTHP Air Temperature/Humidity/Dew/Barometric/Vapor Pressure sensor: DigiTHP-Gen2 Ambient Light sensor: ALS20 Solar Radiation sensor: PYR20 Leaf Wetness sensor: LWS10 Refer to:《FieldScan handheld sensor reader (MultiSense) sensor list》 for more information |
Ordering Code Example: FieldScan(MS)-ABA002-MEC10
Product Series: FieldScan series handheld sensor reader (MultiSense Version) Battery: 3*AA battery, support USB type C auxiliary power input Data Storage: 100,000 Items Storage Other Customization: No customization Sensor Cable Length: 2 meters Sensor Type: Soil Moisture/EC/Temperature sensor: MEC10 |
