MEC20-Soil Moisture, EC and Temperature Sensor, RS485, Modbus

Time:2019/02/19 View:8333 Category:Products Category:Soil Moisture & Temperature & EC Category:Soil Salinity Category:Soil Science

请联系我们咨询

MEC20 measures soil moisture content, EC and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.

Resources
User Manual	UM-MEC20 Soil Moisture, EC and Temperature Sensor
Software	SensorOneSet-EN

■ Integrated with Soil Moisture, EC, Temperature measurement

■ Output Interface with RS485, Voltage, Current

■ Low salinity sensitivity

■ Minimal soil disturbance

■ Water proof to IP68 ratings and can be directly buried into soil

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection

Specifications

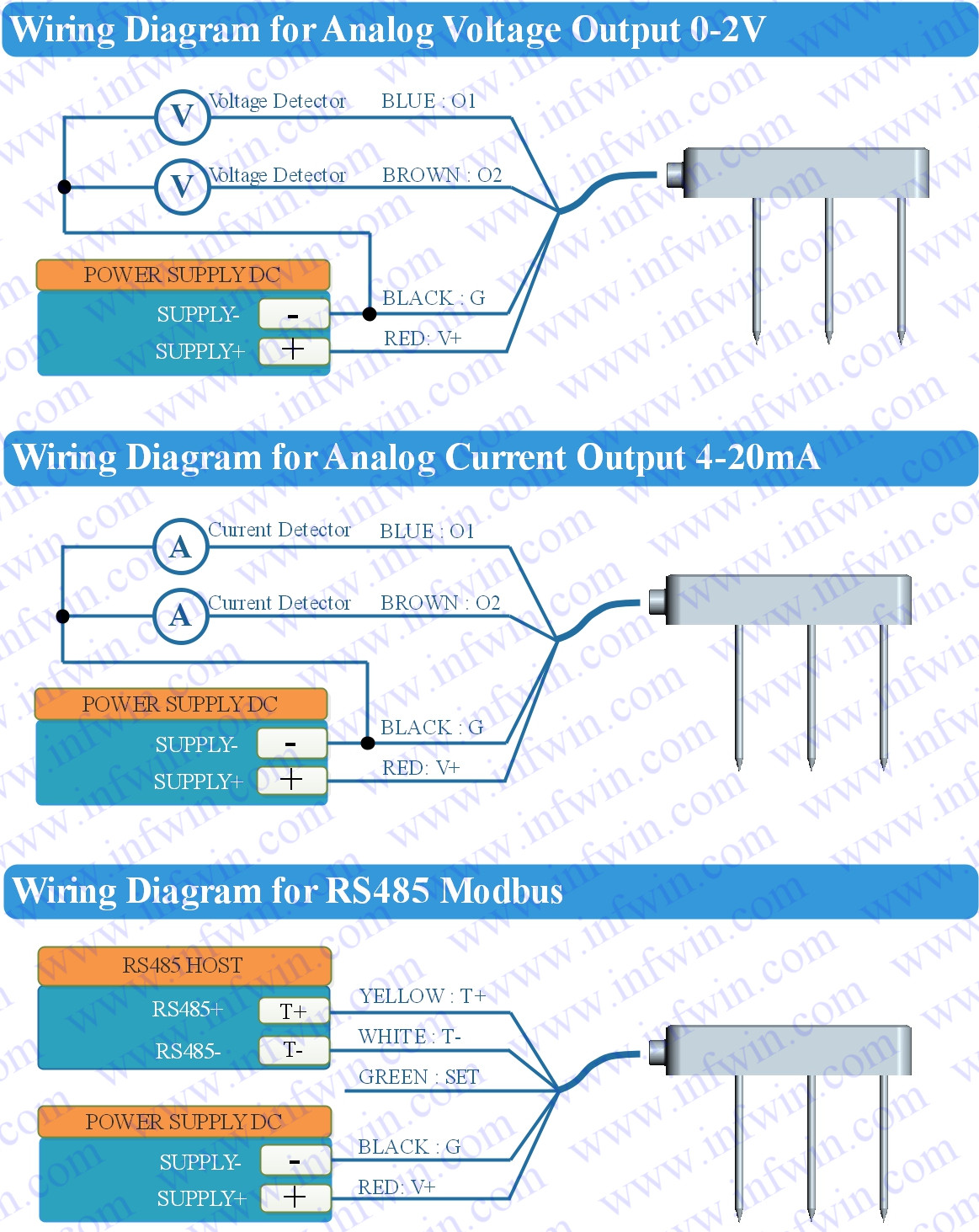

Output Interface	Analog Voltage 0-2V (Output resistance ~0ohm)	Analog Current 4-20mA (Load Resistor<500ohm)	RS485 Modbus-RTU
Power Supply	3.6-30V/DC	12-30V/DC	3.6-30V/DC
Power Consumption	6mA@24V DC	50mA@24V DC (with 2*20mA output signal)	6mA@24V DC
Soil Moisture Measurement	Range:0-50%,0-100% Resolution:0-50%:0.03%,50-100%:1% Accuracy:0-50%:2%,50-100%:3%
EC Measurement	Range: 0-5000us/cm, 10000us/cm, 20000us/cm Resolution: 0-10000us/cm, 10us/cm; 100000-20000us/cm, 50us/cm Accuracy: 0-10000us/cm, ±3%; 10000-20000us/cm, ±5% EC temperature compensation: 0-50℃
Temperature Measurement	Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃
Measurement Technique	Moisture by FDR and EC by AC excitation
IP Ratings	IP68
Operating Temperature	-40~85℃
Sensor Rod	Stainless steel
Sensor Sealed	Epoxy resin
Installation	Surface or buried installation
Cable Length	2 meters or Customize

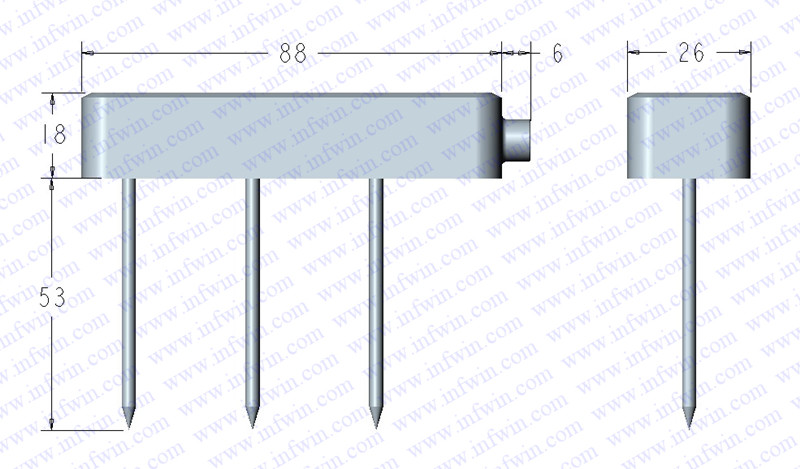

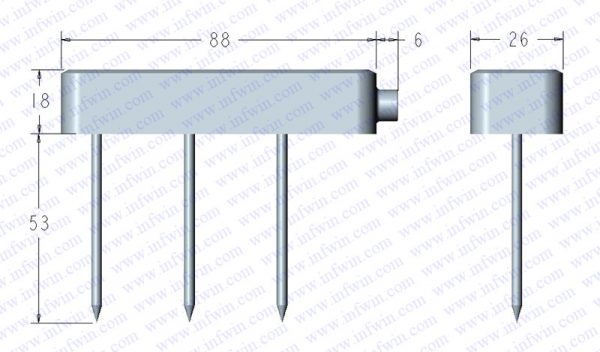

Dimension	887126mm

Parameters

Code

Comments

Code 1:

Product Series

MEC20

MEC20 Soil Moisture, EC, Temperature Sensor

Code 2:

Measuring Parameters

Soil Moisture & Temperature & EC (only for RS485 output)

Soil Moisture & EC

Code 3:

Soil Moisture Range

0-50%

0-100%

Code 4:

EC Range

0-5000us/cm

0-10000us/cm

0-20000us/cm

Customize

Code 5:

Power Supply

3.6-30V DC (not applicable for 4-20mA output)

12-30V DC

2.7-16V DC (not applicable for 4-20mA output)

Customize

2.0-5.5V DC (not applicable for 4-20mA output)

Code 6:

Output Interface

Analog Voltage 0-2V

Analog Current 4-20mA

RS485,Modbus-RTU

RS485,Modbus-RTU & Analog Voltage 0-2V

RS485,Modbus-RTU & Analog Current 4-20mA

SDI-12

Customize

Code 7:

Cable Length

002

XXX

2 meters

Customize, XXX is required cable length(Unit: meter)

Ordering Code Example:

MEC20 Sensor with Soil Moisture & EC & Temperature parameters, Soil Moisture Range 100%, Soil EC Range 20000us/cm, Power Supply 3.6-30V DC, Output Interface RS485, Modbus-RTU, Cable Length 5 meters. Ordering Code is : MEC20 – A B C A C 005
