PHORP10 Isolated PH/ORP Transmitter, SDI-12 Interface

PHORP10 Isolated PH/ORP Transmitter, SDI-12 Interface

View:8108 Category:Measurements Category:ORP Category:PH Category:Products Category:SDI-12 Products Category:SDI-12 Sensors Category:SDI-12 Transmitter

Please contact us for more information

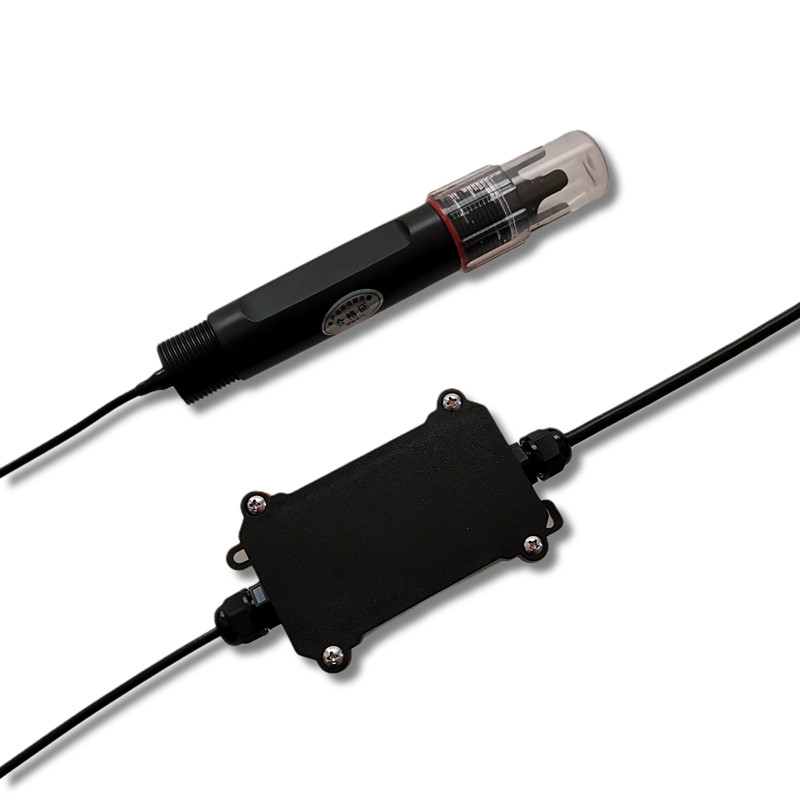

  PHORP10 transmitter measures the PH/ORP of solution or semi-solid substrate. The transmitter is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.



Resources: SDI-12 Interface
User Manual PHORP10 Isolated PH & ORP Transmitter User Manual (SDI-12 Interface)
Software SensorOneSetSDI12-EN



  PHORP10 transmitter measures the PH/ORP of solution or semi-solid substrate. The transmitter is applicable for industrial, water processing, sewerage system, irrigation, smart agriculture etc. The SDI-12 output provides universal compatibility with any SDI-12-enabled data logger and low power applications.

■ PH or ORP measurement

■ SDI-12 Output Interface with low power design

■ High impedance and isolated electrode input

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection



Specifications

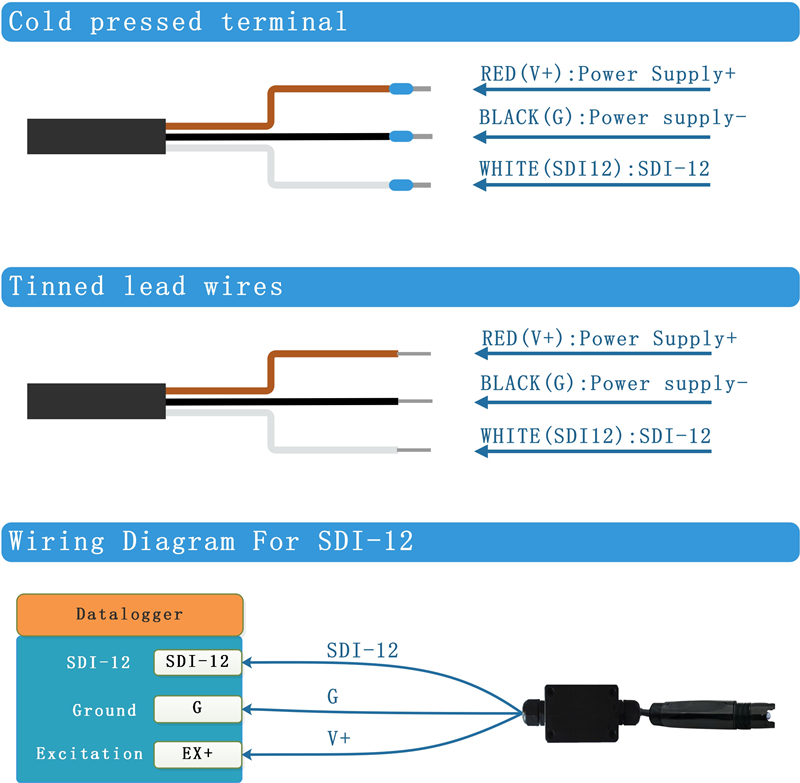

Output Interface Optional: SDI-12, V1.3
Power Supply 4.5-28V/DC
Power Consumption SDI-12 Interface: Quiescent Current : <10uA

Measuring Current : <10mA @ 12V DC

PH Measurement High impedance and isolated input;

Range: 0-14PH, Resolution: 0.01PH, Accuracy: +/-0.1PH; Circuit Response Time < 1 second

ORP Measurement High impedance and isolated input ;

Range: +/-2000mV, Resolution: 0.1mV, Accuracy: +/-1mV; Circuit Response Time < 1 second

Temperature Measurement(Optional) Range: -40~80°C, Resolution: 0.1°C, Accuracy: +/-0.5°C; Circuit Response Time < 1 second
IP Ratings Electrode: IP68; Transmitter: IP65
Operating Temperature: -40~80°C, Humidity: 0-100%
Installation Electrode: 3/4″NPT screw threads; Transmitter: Mounting hole
Cable Length Power and Signal Cable: 2 meters or Customize; Electrode Cable: 5 meters

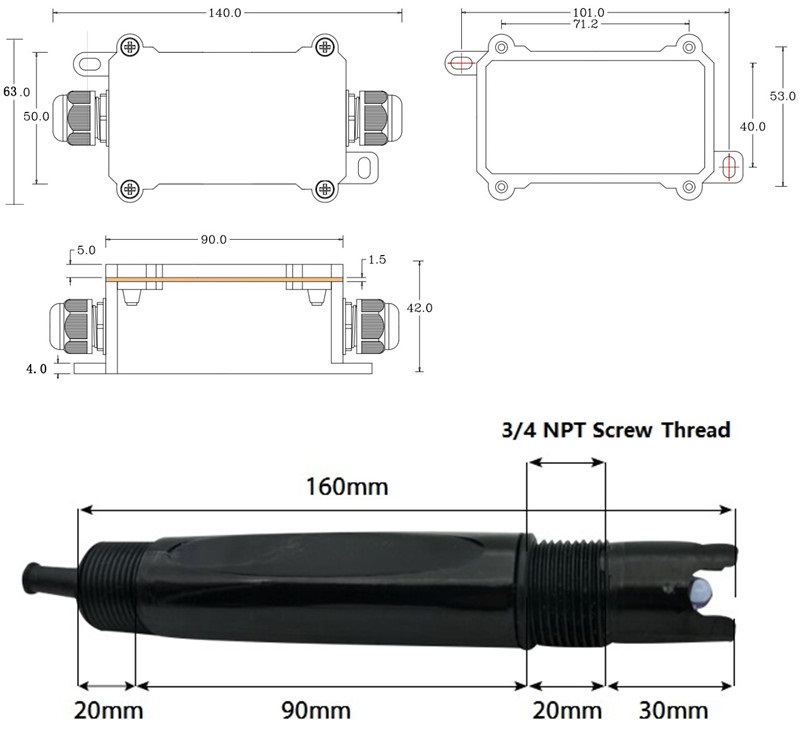

Dimension Electrode: Width*Diameter 160*30mm; 3/4″NPT screw threads

Transmitter: 140mm*65mm*50mm



Ordering Information
Parameters Code Comments
Code 1:

Product Series

PHORP10



PHORP10 transmitter
Code 2:

Electrode Selection

A

B

C

D

E

PH Electrode (No Built-in Temperature Compensation Sensor)

PH Electrode (With Built-in Temperature Compensation)

ORP Electrode (No Built-in Temperature Compensation Sensor)

ORP Electrode (With Built-in Temperature Compensation)

Transmitter Only (No PH /ORP Electrode)

Code 3:

Power Supply

C 4.5-28V DC
Code 4:

Output Interface

F SDI-12
Code 5:

Cable Length

002

XXX

Electrode Cable:5 meters, Power and Signal Cable: 2 meters

Electrode Cable:5 meters, Power and Signal Cable: xxx meters

Ordering Code Example: PHORP10-A C F 002

PHORP10: PHORP10 transmitter

A: PH Electrode (No Built-in Temperature Compensation Sensor)

C: Power Supply 4.5-28V DC

F: Output Interface SDI-12

002: Electrode Cable:5 meters , Power and Signal Cable:2 meters
